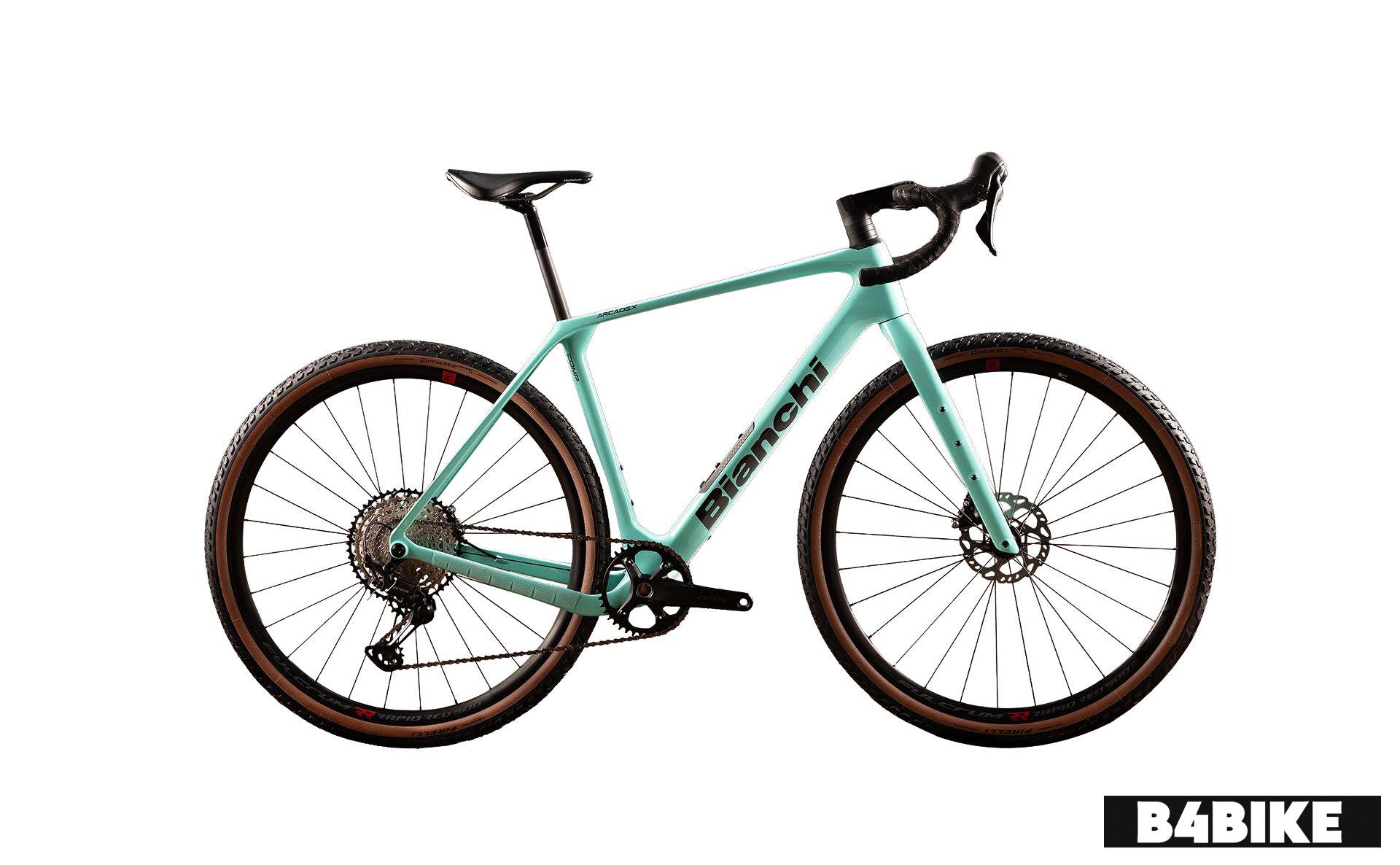

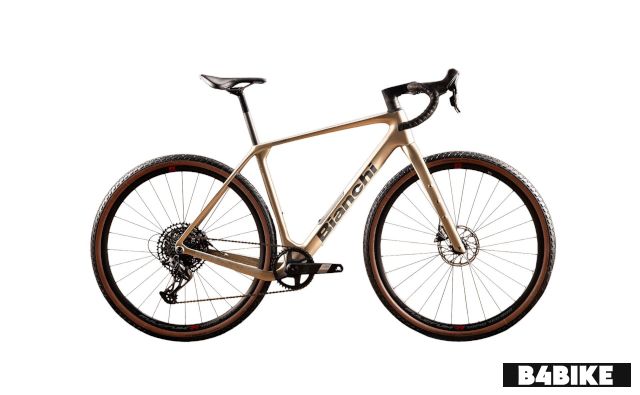

Detailed information on the Bianchi Arcadex Comp Apex disc 1x12sp
The Bianchi Arcadex Comp Apex Disc 1x12sp takes on rugged trails with a mix of reliability and grit. A Sram SX Eagle chain handles the load during climbs and descents, while Sram Apex D1 shifters ensure gear changes stay crisp across varied terrain. Its frame geometry encourages a forward stance, giving riders better handling when things get fast or technical. Wide tires and disc brakes allow control without hesitation on loose or wet surfaces. This model suits off-road sessions and long-distance adventures where endurance and control matter more than flair.
Rate Bianchi Arcadex Comp Apex disc 1x12sp:
Bianchi Arcadex Comp Apex disc 1x12sp Price
$
3454
[United States]
The price could differ based on factors such as color, accessories and other features.
| Country, City | Price |
|---|---|
| United States | $ 3454 |
Images
Colours
AY
AZ
Specifications
| Vehicle Type | Road Bike |
| Stem | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61) |
| Handlebar | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| Fork | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite |
| Seatpost | Velomann Carbon UD SeatPost O.D: 27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61) |
| Grip | Bianchi Hexagon tape 2.5mm thickness, Full black |
| Crankset | Sram Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
| Chain | Sram SX Eagle |
| Shifters | Sram Apex D1 |
| Saddle | Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel length: 250mm width: 149mm |
| Headset | Bianchi Custom Acros ICR (Internal Cable Routing) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Custom Compression Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
| Derailleur : Rear | Sram Apex Eagle Maximum Cassette Sprocket 52T |
| Cassette | Sram SX Eagle, PG-1210 11-50T Driver Body Interface: HG11 |
| Bottom Bracket | Sram DUB PressFit Road Wide 86.5 X 41 |
| Brakes | |
|---|---|
| Front Brake | Sram APEX Pad Type: Steel-Backed Organic Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm |
| Rear Brake | Sram APEX Pad Type: Steel-Backed Organic Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm |
| Chassis and Suspension | |
|---|---|
| Frame | Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: |
| Tyres | |
|---|---|
| Wheels / Rim | Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Width Channel: 22 mm |
| Front Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| Rear Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
