Detailed information on the Bianchi Arcadex Pro Apex/GX AXS disc 1x12sp
The Bianchi Arcadex Pro Apex/GX AXS disc 1x12sp is a gravel-focused machine tailored for long, demanding rides. The Sram Apex AXS HRD shifters allow wireless shifting with minimal effort, keeping the cockpit uncluttered. Shifts remain precise even under load, thanks to the Sram GX Eagle Transmission Flattop chain. Geometry and structure remain confident over mixed terrain without sacrificing pace on asphalt. This model favors those who seek silent function and tactile control over gimmicks.
Rate Bianchi Arcadex Pro Apex/GX AXS disc 1x12sp:
Bianchi Arcadex Pro Apex/GX AXS disc 1x12sp Price
$
5870
[United States]
The price could differ based on factors such as color, accessories and other features.
| Country, City | Price |
|---|---|
| United States | $ 5870 |

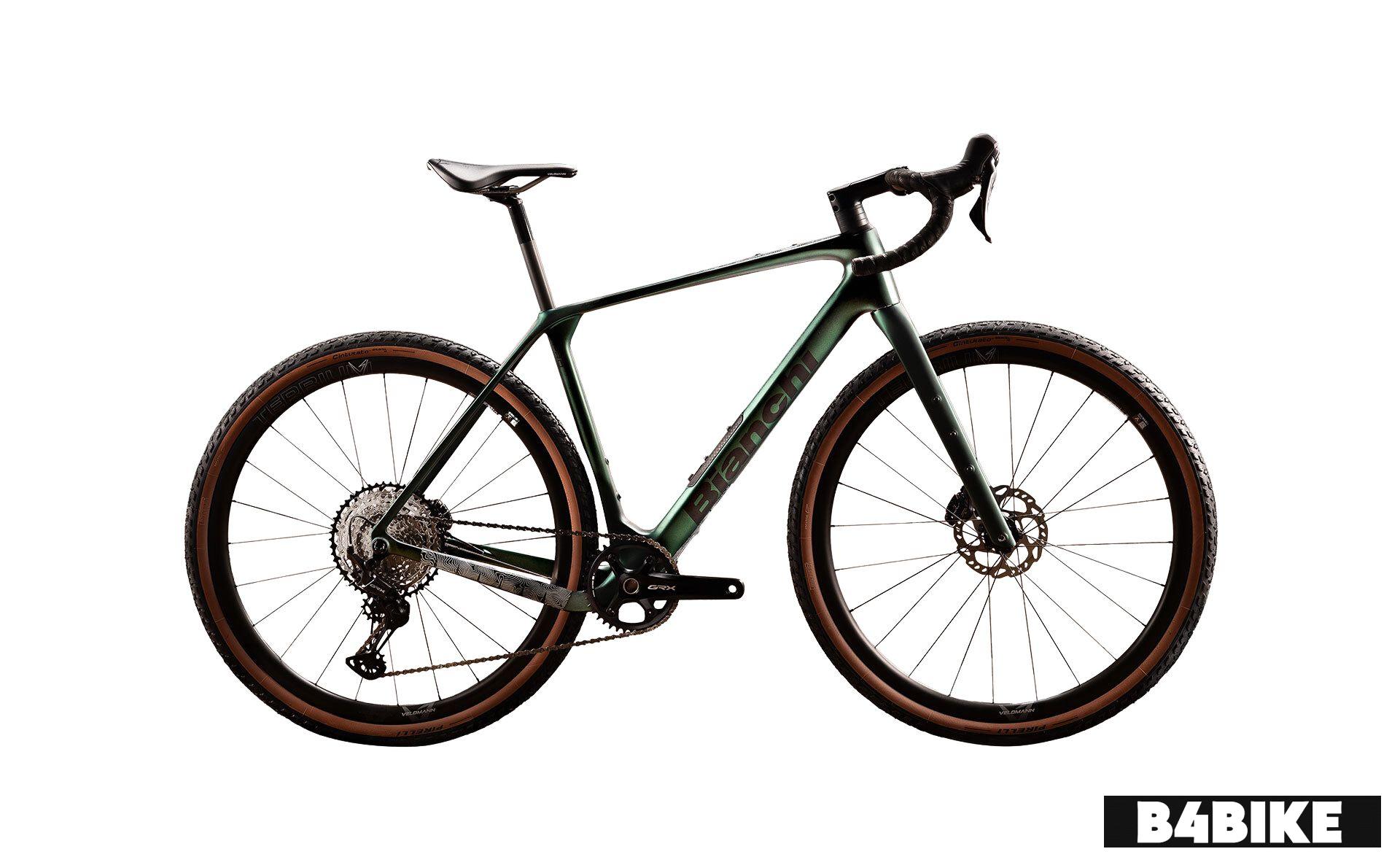

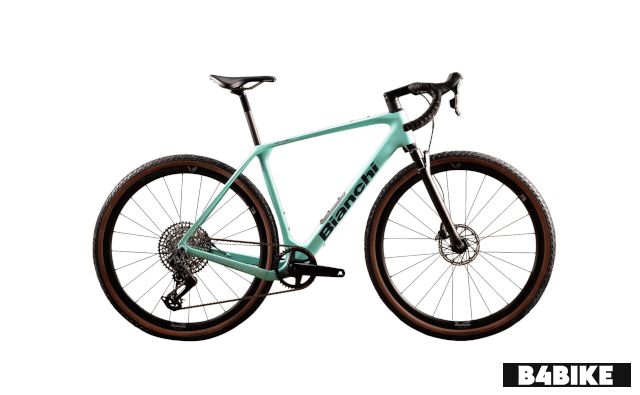

Images
Colours
AF
AW
Specifications
| Vehicle Type | Road Bike |
| Stem | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61) |
| Handlebar | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| Fork | Suspension Fork: RockShox Rudy XPLR Travel: 30 mm Disc Brake Specification: Direct Flat Mount 160/180 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-50mm Steer tube Diameter: Tapered 1 1/8"" to 1.5"" Fork Rake: 51 mm |
| Seatpost | Velomann Carbon UD SeatPost O.D: 27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61) |
| Grip | Bianchi Hexagon tape 2.5mm thickness, Full black |
| Crankset | Sram Rival 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
| Chain | Sram GX Eagle Transmission Flattop |
| Shifters | Sram Apex AXS HRD Shift System |
| Saddle | Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel length: 250mm width: 149mm weight: 230g ± 2 |
| Headset | Bianchi Custom Acros ICR (Internal Cable Routing) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Custom Compression Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal Base Plate wi |
| Derailleur : Rear | Sram GX Eagle Transmission (T-type AXS) |
| Cassette | Sram GX Eagle Transmission, XS 1272 T-Type, 10-52T Driver Body Interface: XD |
| Bottom Bracket | Sram DUB PressFit Road Wide 86.5 X 41 |
| Brakes | |
|---|---|
| Front Brake | Sram APEX Pad Type: Steel-Backed Organic Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm |
| Rear Brake | Sram APEX Pad Type: Steel-Backed Organic Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm |
| Chassis and Suspension | |
|---|---|
| Frame | Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X 41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: |
| Tyres | |
|---|---|
| Wheels / Rim | Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Width Channel: 25 mm |
| Front Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| Rear Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
