Bianchi Arcadex Pro GRX 820/822 disc 1x12sp Road Bike
- Home ››
- Road Bikes ››
- Bianchi ››
- Arcadex ››
- Arcadex Pro GRX 820/822 disc 1x12sp
Detailed information on the Bianchi Arcadex Pro GRX 820/822 disc 1x12sp
The Bianchi Arcadex Pro Apex/GX AXS disc 1x12sp Road Bike holds a clear focus on gravel adaptability and electronic shifting precision. The Shimano CN-M7100 chain supports fast engagement and consistent drivetrain behavior. Shifting is handled by the Shimano GRX 820 ST/BL-RX820 setup, well suited for off-tarmac riding where quick control matters. The frame geometry leans toward long-haul comfort without giving up off-road agility. Bianchi’s approach here leans into endurance and control rather than chasing extreme race angles.
Rate Bianchi Arcadex Pro GRX 820/822 disc 1x12sp:
Bianchi Arcadex Pro GRX 820/822 disc 1x12sp Price
$
4836
[United States]
The price could differ based on factors such as color, accessories and other features.
| Country, City | Price |
|---|---|
| United States | $ 4836 |

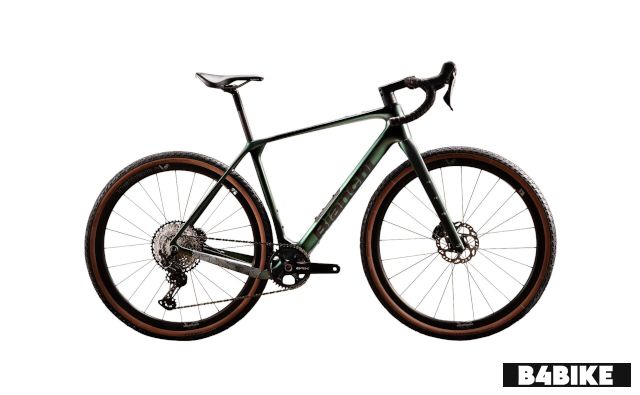

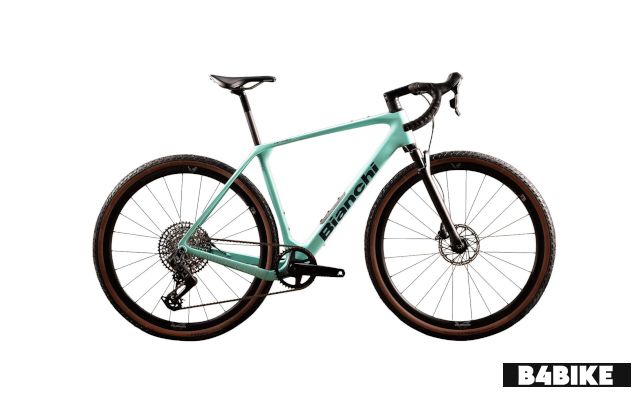

Images
Colours
AF
AW
Specifications
| Vehicle Type | Road Bike |
| Stem | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61) |
| Handlebar | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| Fork | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite |
| Seatpost | Velomann Carbon UD SeatPost O.D: 27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61) |
| Grip | Bianchi Hexagon tape 2.5mm thickness, Full black |
| Crankset | Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
| Chain | Shimano CN-M7100 |
| Shifters | Shimano GRX 820 ST/BL-RX820 |
| Saddle | Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2 |
| Headset | Bianchi Custom Acros ICR (Internal Cable Routing) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Custom Compression Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
| Derailleur : Rear | Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T |
| Cassette | Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline |
| Bottom Bracket | Shimano SM-BB72-41B, press fit |
| Brakes | |
|---|---|
| Front Brake | Shimano Hydraulic Brake, BR-RX820 Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm |
| Rear Brake | Shimano Hydraulic Brake, BR-RX820 Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm |
| Chassis and Suspension | |
|---|---|
| Frame | Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Bracket Standard: PressFit 86.5 X 41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: |
| Tyres | |
|---|---|
| Wheels / Rim | Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear) |
| Front Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| Rear Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
