Bombtrack Arise Road Bike: Specs, Price, colors & Features

Detailed information on the Bombtrack Arise

Rate Bombtrack Arise:

4.0/5 (2 votes)

Write a Review

Bombtrack Arise Price

Not Available

Images

Features

Similar Road Bikes

Festka Spectre

Voodoo Bondye

Canyon Ultimate CF 7

Lynskey Aeon Shimano 105 Di2 2x12

Giant Propel Advanced 1

BMC Teammachine R 01 Three

Colours

Metallic black

Specifications

Vehicle Type	Road Bike
Load Carrying Capacity	120 kg
Stem	Bombtrack Roam forged aluminium stem, -7°

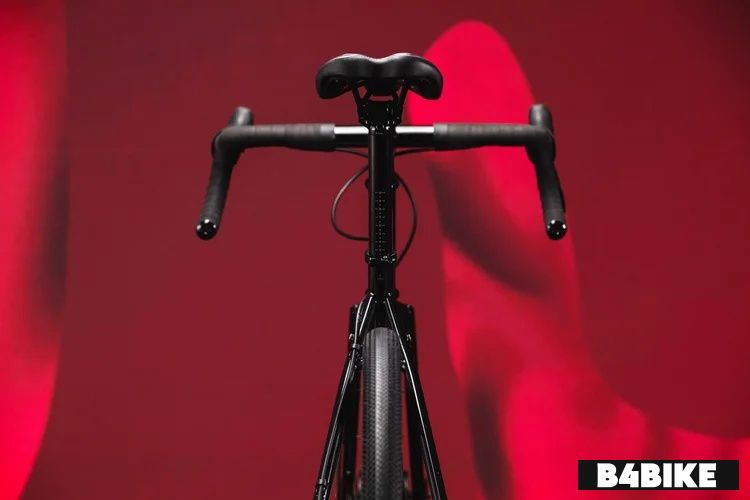

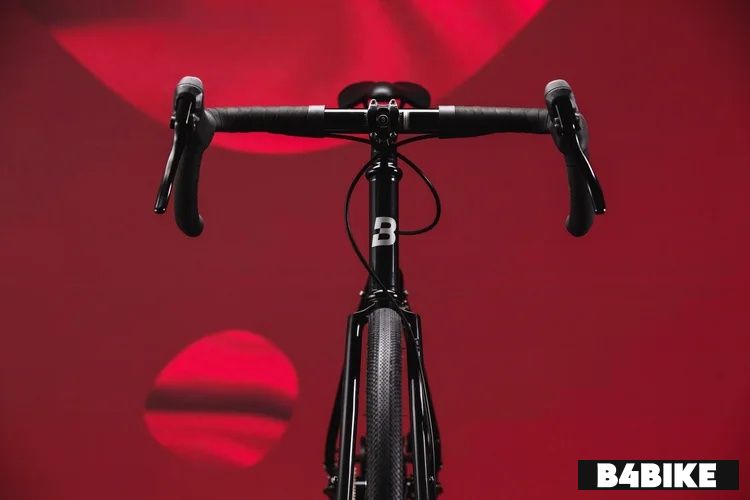

Handlebar	Seido CX-10 drop bar, 31.8 mm, 10° flare

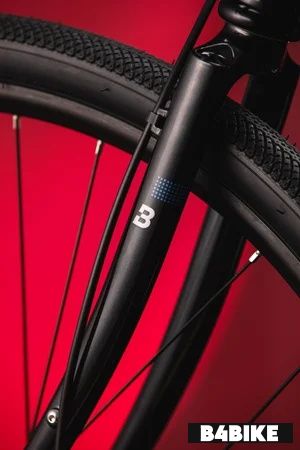

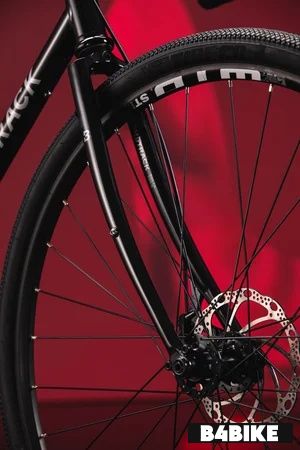

Fork	4130 crmo, TA, rack / fender mounts, internal hub Dynamo cable routing
Seatpost	Bombtrack Beech 27.2 mm x 300 mm
Grip	Bombtrack Control bar tape

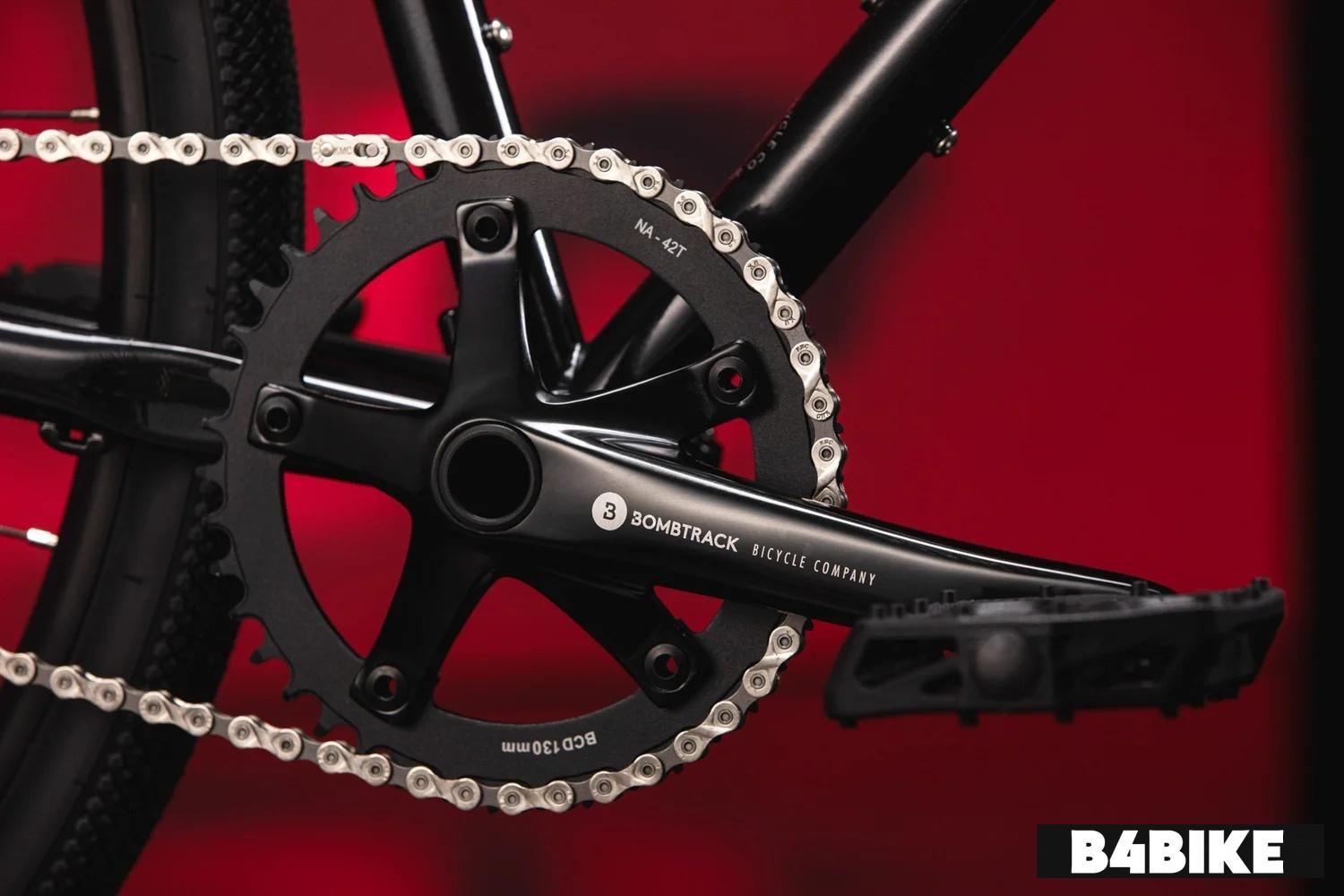

Crankset	Bombtrack TAF19 aluminium crank, 24 mm spindle
Pedals	Wellgo B109N flat pedal
Chain	KMC X8 chain, 1/2'' x 3/32'', 98L
Saddle	Bombtrack Fuzz saddle
Headset	Neco H282 sealed external aheadset, 1.1/8''
Hub : Front	Bombtrack Arc sealed hub, 6-bolt disc

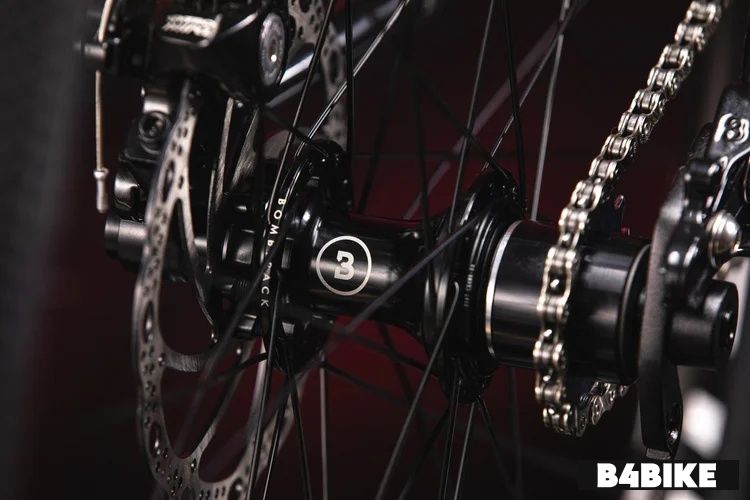

Hub : Rear	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Cassette	16 T heat treated crmo, 1/2'' x 3/32''
Chainrings	Bombtrack Ridge aluminium chainring, narrow-wide, 42 T
Bottom Bracket	BSA sealed BB, external cups

Brakes
Front Brake	Tektro Mira post mount mechanic disc brakes Tektro 180 mm Rotor
Rear Brake	Tektro Mira post mount mechanic disc brakes Tektro 160 mm
Brake Lever	Tektro RL-340 brake levers

Chassis and Suspension

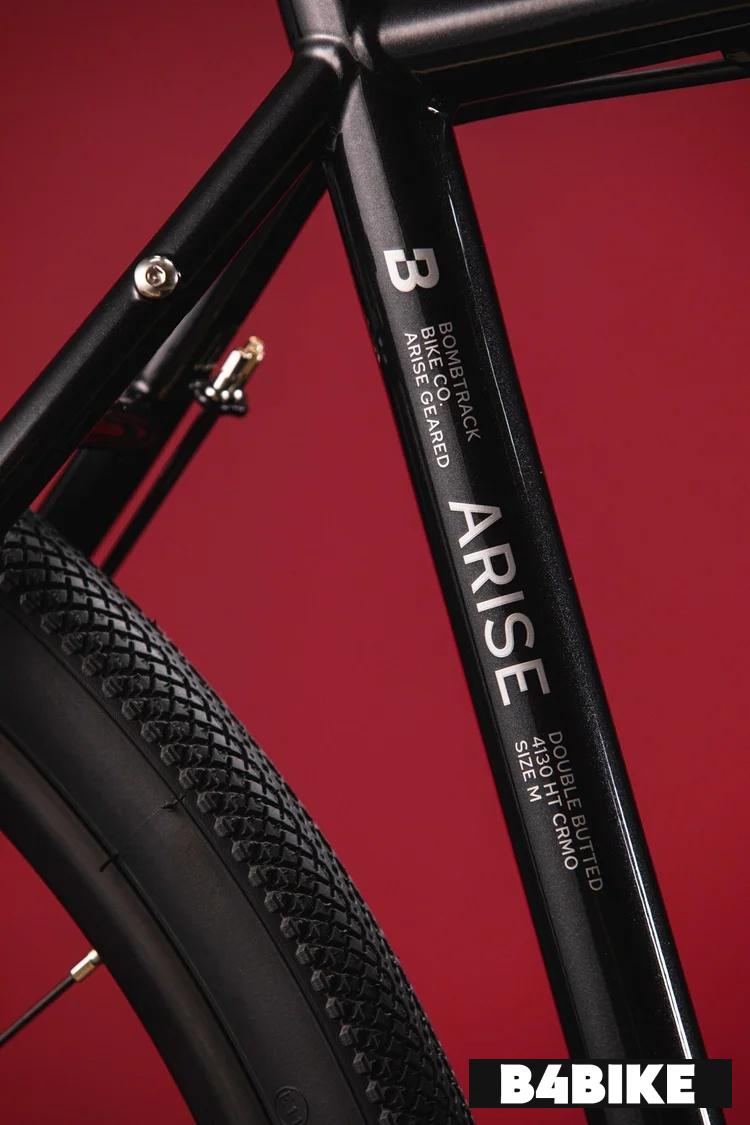

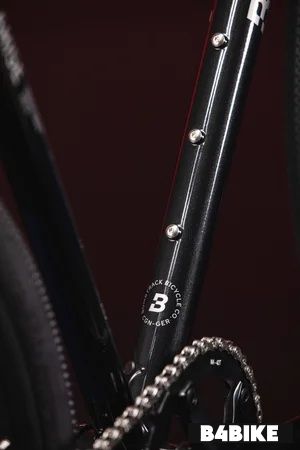

Frame	4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell

Tyres
Wheels / Rim	Rim: WTB ST i19 double wall, TCS 2.0, 32h
Front Tyre	XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C
Rear Tyre	XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C

Dimensions
Weight	11.4 kg

Additional Details
Through axle: 12 x 100 mm / 12 x 142 mm
