Detailed information on the Colnago V5Rs Sram Red eTap AXS
The Colnago V5Rs Sram Red eTap AXS showcases a sharp approach to modern racing geometry, shaped entirely from monocoque carbon. The 48-35T chainrings allow for quick shifts in pace, especially noticeable during climbs and punchy accelerations. Each contour on the frame hints at Colnago's long racing legacy without overcomplicating the visual language. This setup encourages serious miles on both flats and gradients, with minimal interference from mechanical distractions.
Rate Colnago V5Rs Sram Red eTap AXS:
Colnago V5Rs Sram Red eTap AXS Price
$
11750
[United States]
The price could differ based on factors such as color, accessories and other features.
| Country, City | Price |
|---|---|
| United States | $ 11750 |

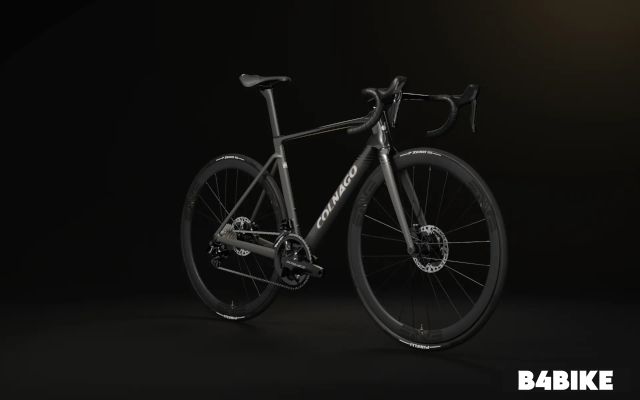

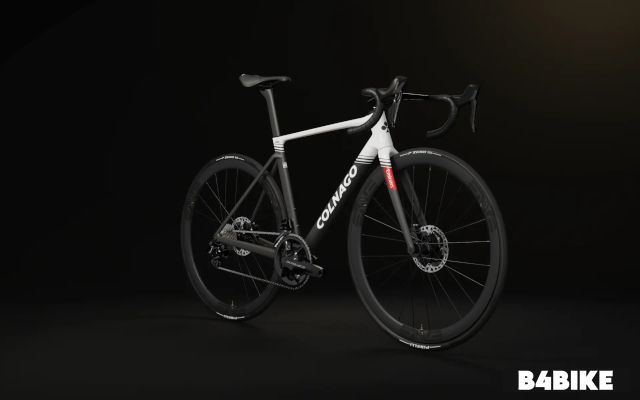

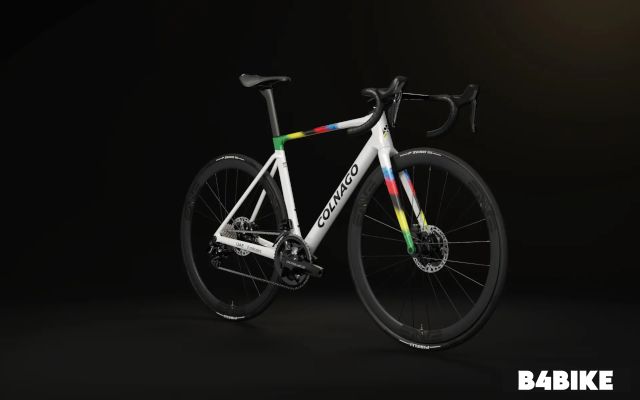

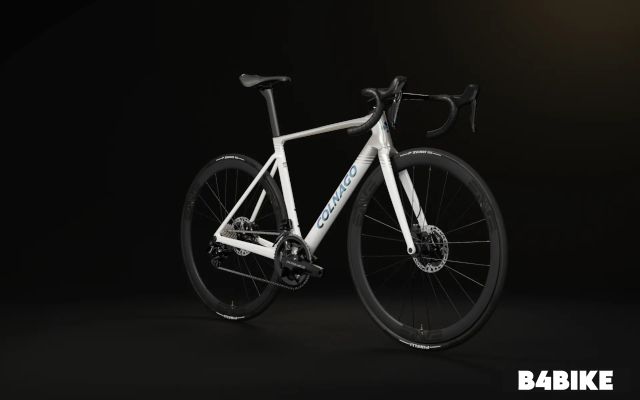

Images
Specifications
| Vehicle Type | Road Bike |
| Stem | CC01 integrated cockpit |
| Handlebar | Colnago CC.01 integrated Cockpit - regular geometry |
| Fork | Carbon fork for disc brakes, integrated cables, Semi-Circular section |
| Seatpost | Standard Option: Carbon seatpost, 15mm offset Sold separately: Carbon seatpost, 0 mm offset |
| Grip | Colnago Grip Black or Colnago WT23 (for WT24 color scheme only) |
| Crankset | Option 1 (Standard for sizes 420 - 485): 170 mm Option 2 (Standard for sizes 510 - 530): 172.5 mm Option 3 (Standard for sizes 550 - 570): 175 mm |
| Chain | RED Chain - CN-RED-D1 |
| Shifters | Sram RED eTap AXS Disc 12v |
| Saddle | Scratch M5 Nack 140 Hard Black Selle Italia Novus Boost EVO TI316 Superflow |
| Headset | 1"1/8 and 1"1/4 - SLT Treated Bearings |
| Derailleur : Front | Sram RED eTap AXS - FD-RED-E-D1 |
| Derailleur : Rear | Sram RED eTap AXS - RD-RED-E-D1 |
| Hub : Front | Fulcrum Wind 420 DB Aluminum, Low flanges. Sealed bearing, Adjustable Fulcrum Racing 600 DB Aluminum, Aluminum flanges Sealed cartridge bearings |
| Hub : Rear | Fulcrum Wind 420 DB Aluminum, Low flanges. Sealed bearing, Adjustable Fulcrum Racing 600 DB Aluminum, Aluminum flanges Sealed cartridge bearings |
| Cassette | Option 1 (Default): 10-28T Option 2: 10-30T |
| Chainrings | 48-35T |
| Bottom Bracket | BSA (English Threaded Bottom Bracket) SRAM DUB |
| Brakes | |
|---|---|
| Front Brake | 160mm, Disc brakes SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor |
| Rear Brake | 140mm, Disc brakes SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor |
| Brake Lever | SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM |
| Chassis and Suspension | |
|---|---|
| Frame | Colnago V5Rs Monocoque carbon frame |
| Tyres | |
|---|---|
| Wheels / Rim | Option 1: Fulcrum Racing Wind 420 DB Option 2: Fulcrum Racing 600 DB Rim height Fulcrum Wind 420 DB: 42 mm Fulcrum Racing 600 DB: 24 mm Internal channel width Fulcrum Wind 420 DB: 23 mm Fulcrum Racing 600 DB: 20 mm |
| Front Tyre | Fulcrum Wind 420 DB Pirelli PZero Race 700x28 Fulcrum Racing 600 DB Pirelli P7 Sport 700x28 Maximum tyre size: 32 mm (nominal width) |
| Rear Tyre | Fulcrum Wind 420 DB Pirelli PZero Race 700x28 Fulcrum Racing 600 DB Pirelli P7 Sport 700x28 Maximum tyre size: 32 mm (nominal width) |
| Accessories |
|---|
| Bottle cage: Colnago Matt Black (1x) |
| Additional Details |
|---|
| Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear) |
