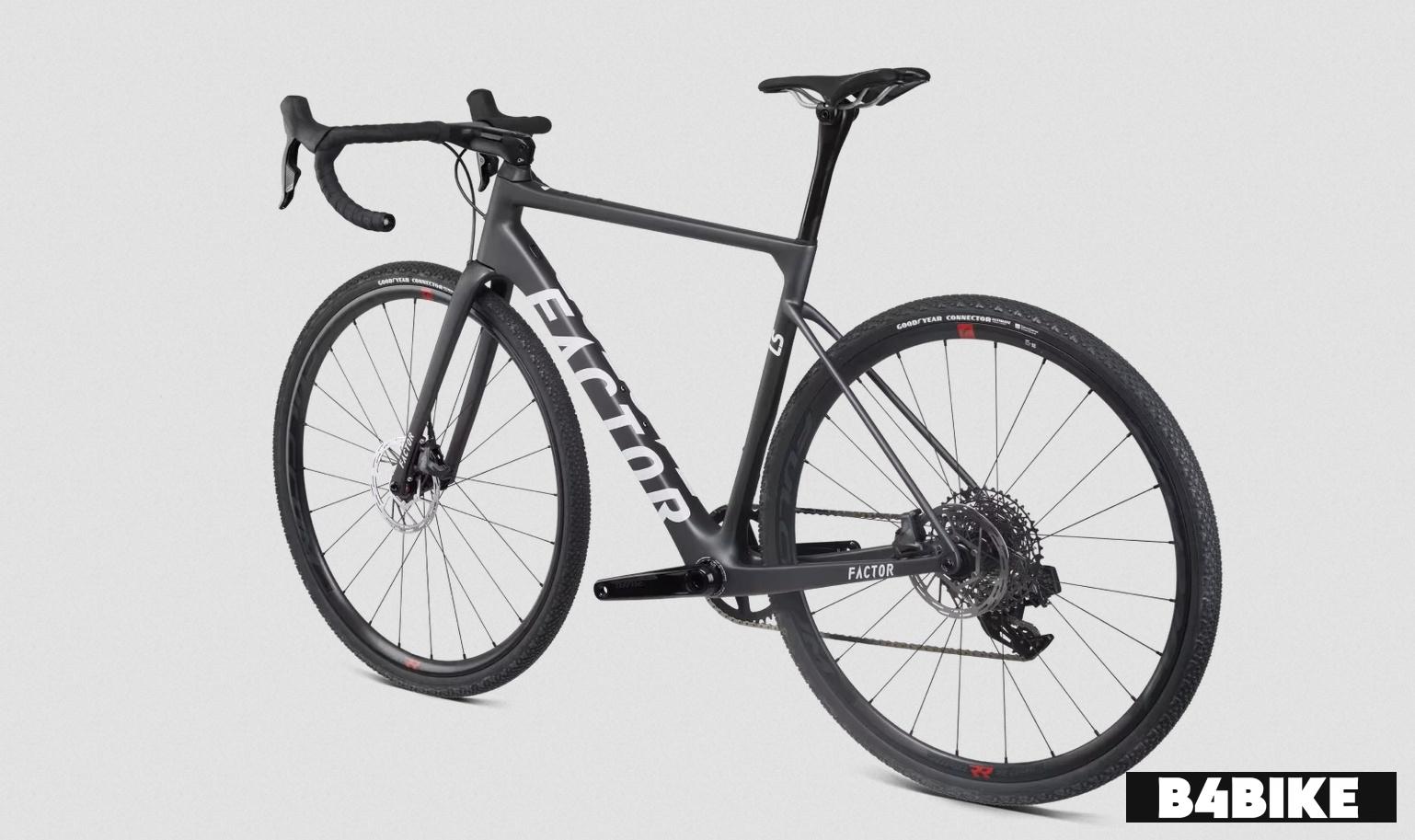

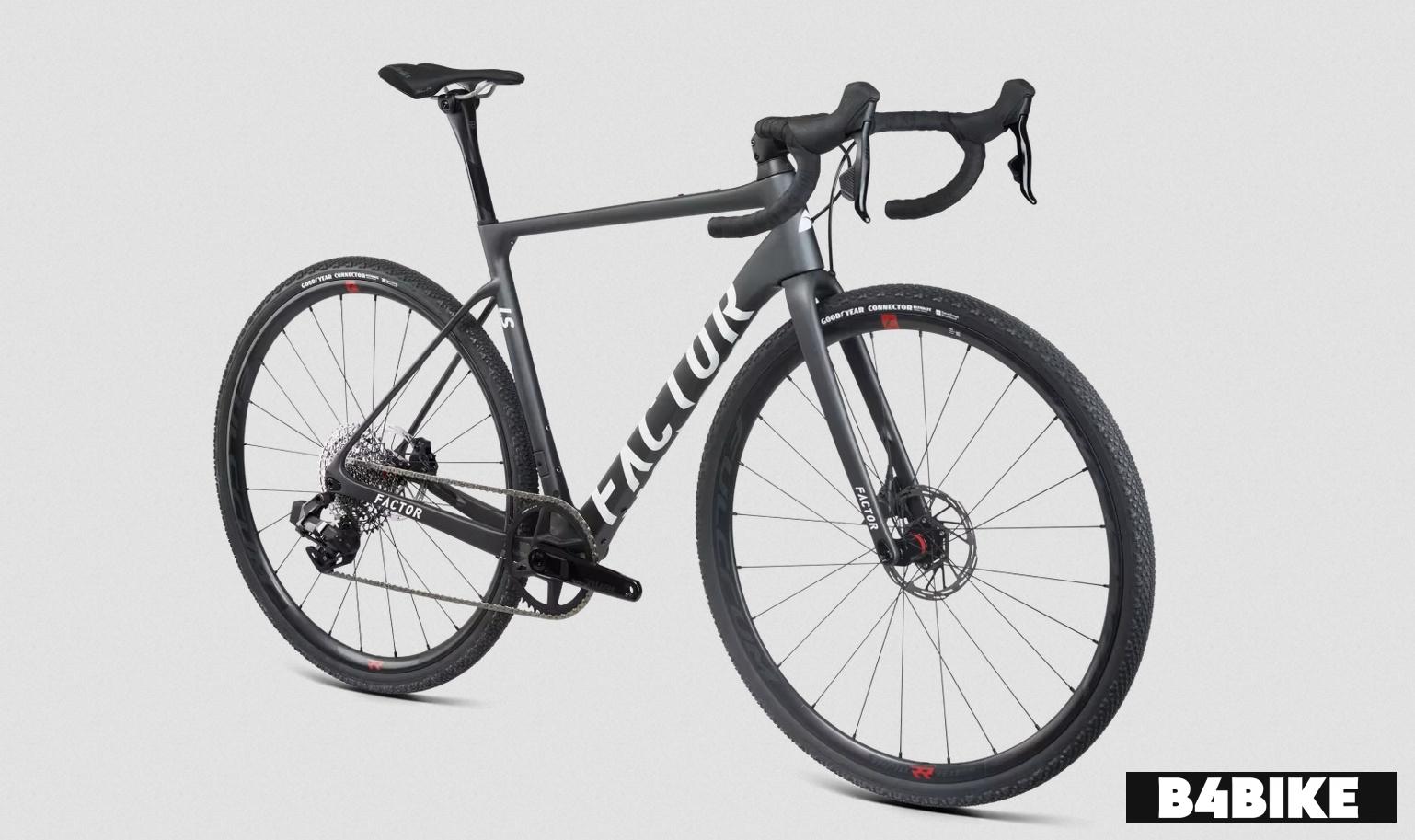

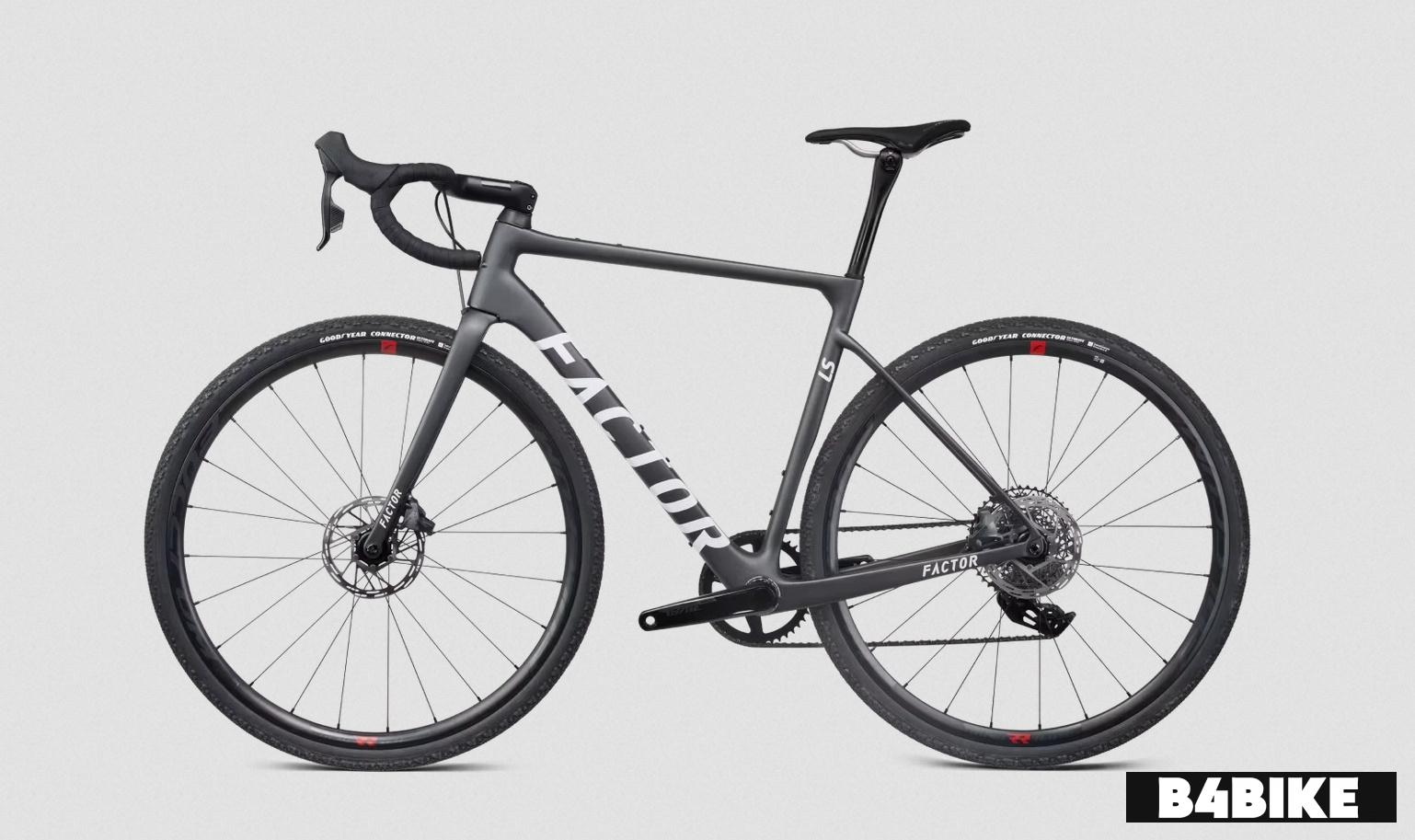

The Factor LS Road Bike presents a minimalist frame supported by a full carbon fork for a rigid yet responsive front end. The T47 threaded bottom bracket adds a solid and serviceable connection at the core, suitable for long-term use. Its internal routing allows for both electronic and mechanical drivetrains, giving riders the freedom to tailor their setup. Crisp lines and subtle detailing keep the appearance traditional while keeping performance priorities clear.
Black Inc Integrated Barstem Reach 80mm, drop 120mm. Multiple stem lengths and bar widths available
Handlebar
Black Inc Integrated Barstem Reach 80mm, drop 120mm. Multiple stem lengths and bar widths available
Fork
Factor LS carbon
Seatpost
27.2 Round, post not included
Headset
FSA 1-1/8″ upper and 1-3/8″ lower bearings
Chainrings
52-tooth
Bottom Bracket
T47A
Brakes
Front Brake
160mm, Disc
Rear Brake
160mm, Disc
Chassis and Suspension
Frame
Factor Toray® & Nippon Graphite® Pan-Based Fiber
Tyres
Wheels / Rim
700c, Black Inc THIRTY FOUR
Front Tyre
Max Tire Clearance: 40mm measured
Rear Tyre
Max Tire Clearance: 40mm measured
Additional Details
Head Tube Diameter: 1-1/8″ upper and 1-3/8″ lower
Saddle Rail Clamps: 7x7 and 7x9
Compatible Components: 1x or 2x, Electronic or Mechanical
Front axle: 12x100 Threaded
Rear axle: 12x142 Threaded
