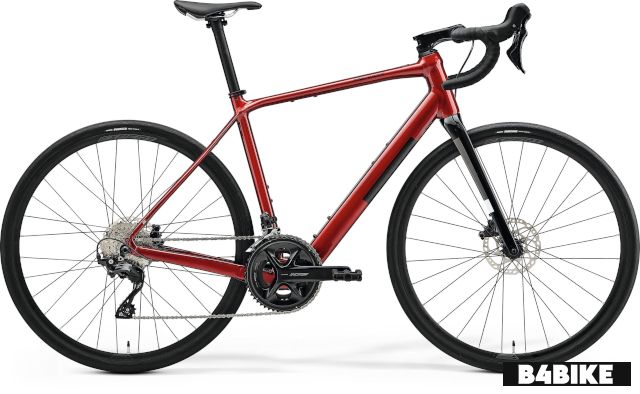

MERIDA eScultura 400 Electric Road Bike

• Home ››
• Road Bikes ››
• MERIDA ››
• eScultura ››
• eScultura 400

Detailed information on the MERIDA eScultura 400

Rate MERIDA eScultura 400:

4.0/5 (2 votes)

Write a Review

MERIDA eScultura 400 Price

Not Available

Colours

Dark Strawberry(Black)

Specifications

Vehicle Type	Road Bike
Fuel	Electric
Load Carrying Capacity	120 Kg
Drivetrain	Mahle X30
Stem	Aluminium 31.8mm diameter 6° stem angle 80 mm (XS), 90 mm (S), 100 mm (M), 110 mm (L/XL)
Handlebar	Aluminium 400mm (XS/S), 420mm (M/L), 440 (XL)
Fork	Carbon
Seatpost	Carbon 30.9mm diameter 0mm setback
Grip	MERIDA ROAD EXPERT
Crankset	Shimano 105 R7100 52-36 teeth 170 mm-XS/S/SM/ML, 175 mm (L/XL)
Pedals	VP VPE-891
Chain	Shimano M7100
Saddle	V-mount
Headset	MERIDA 8158
Derailleur : Front	Shimano 105 R7100
Derailleur : Rear	Shimano 105 R7100, GS
Hub : Front	Shimano HB-TC500 100x12mm width front hub 28 spoke holes Centerlock
Spoke	Black stainless
Chainrings	Shimano 105 11-36 teeth 12 speed
Bottom Bracket	Shimano BSA

Electricals
Battery	Mahle 250 Wh, Integrated
Head Lamp	CG-119PG-BLACK(1)
Tail Lamp	CG-404RG-BLK

Brakes
Front Brake	Shimano 105 R7100 2 piston, 160 mm
Rear Brake	Shimano 105 R7100 2 piston, 160 mm

Chassis and Suspension
Frame	Aluminium

Tyres
Wheels / Rim	Rim MERIDA Expert SL 17mm inner width 22mm height aluminium Tubeless ready (tubeless tape and valves not included)
Front Tyre	Maxxis Pursuer 700x32C fold
Rear Tyre	Maxxis Pursuer 700x32C fold

Dimensions
Weight	12.2 kg
