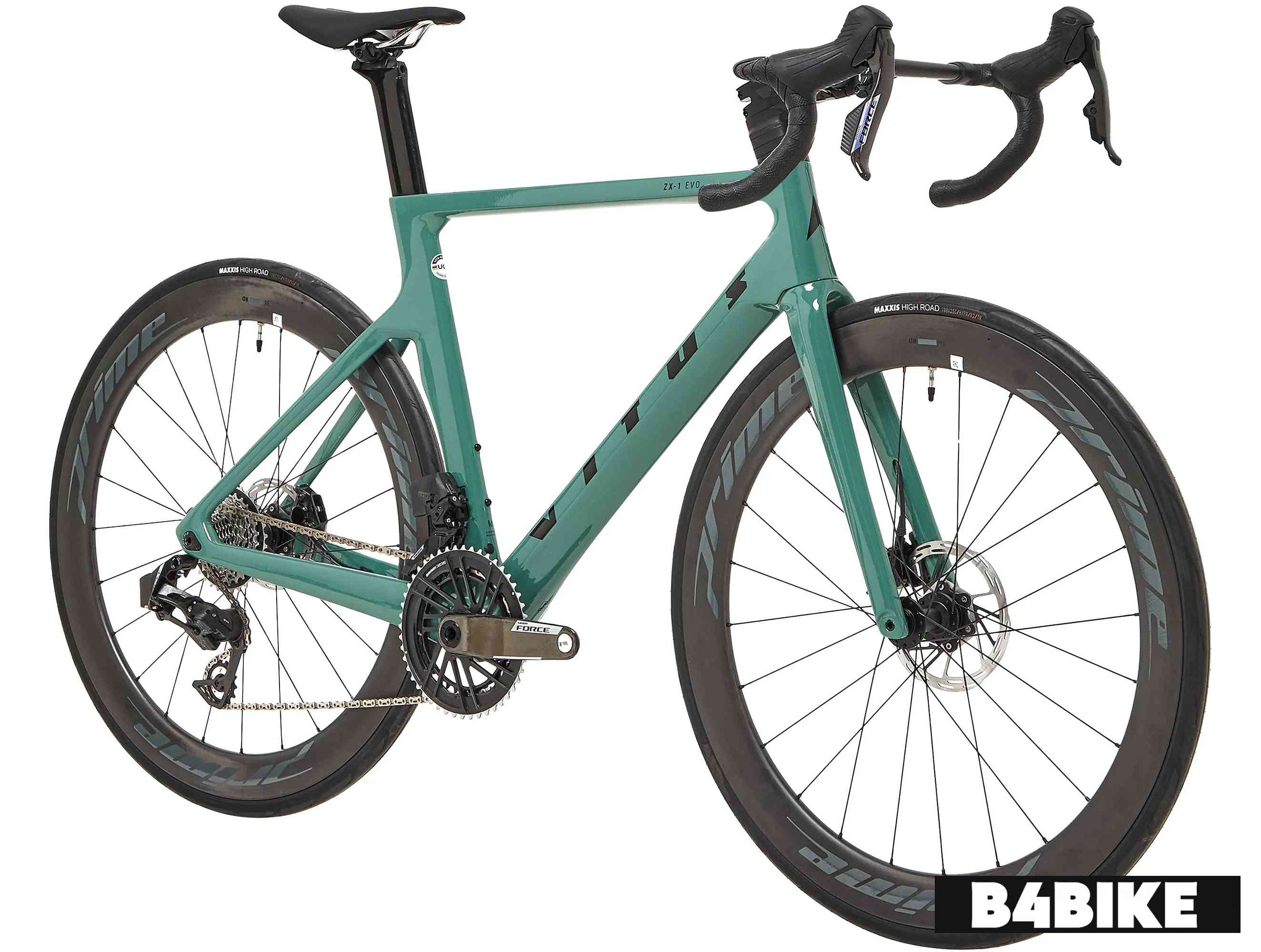

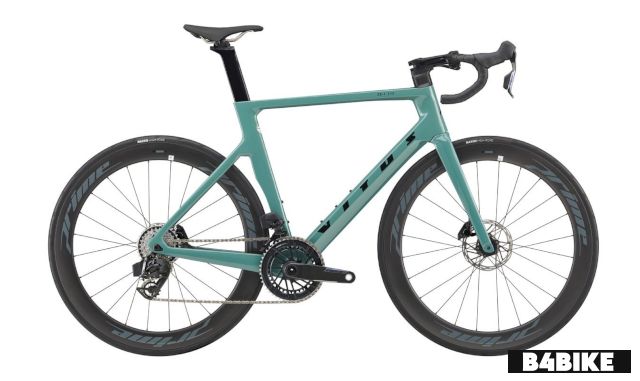

Vitus ZX-1 EVO Force AXS 2026 Road Bike
- Home ››
- Road Bikes ››
- Vitus ››
- ZX-1 EVO ››
- ZX-1 EVO Force AXS 2026
Detailed information on the Vitus ZX-1 EVO Force AXS 2026
Vitus ZX-1 EVO Force AXS 2026 Price
Not Available
Images
Features
Race-Fit geometry
SL UD Carbon aero frame and fork with integrated seat clamp
Full internal cable routing
SRAM Force AXS HRD groupset
Prime Doyenne 56 carbon disc wheelset
Prime Primavera aero carbon bar, FSA semi-integrated stem
SL UD Carbon aero frame and fork with integrated seat clamp
Full internal cable routing
SRAM Force AXS HRD groupset
Prime Doyenne 56 carbon disc wheelset
Prime Primavera aero carbon bar, FSA semi-integrated stem
Similar Road Bikes
Colours
Sage Green
Specifications
| Vehicle Type | Road Bike |

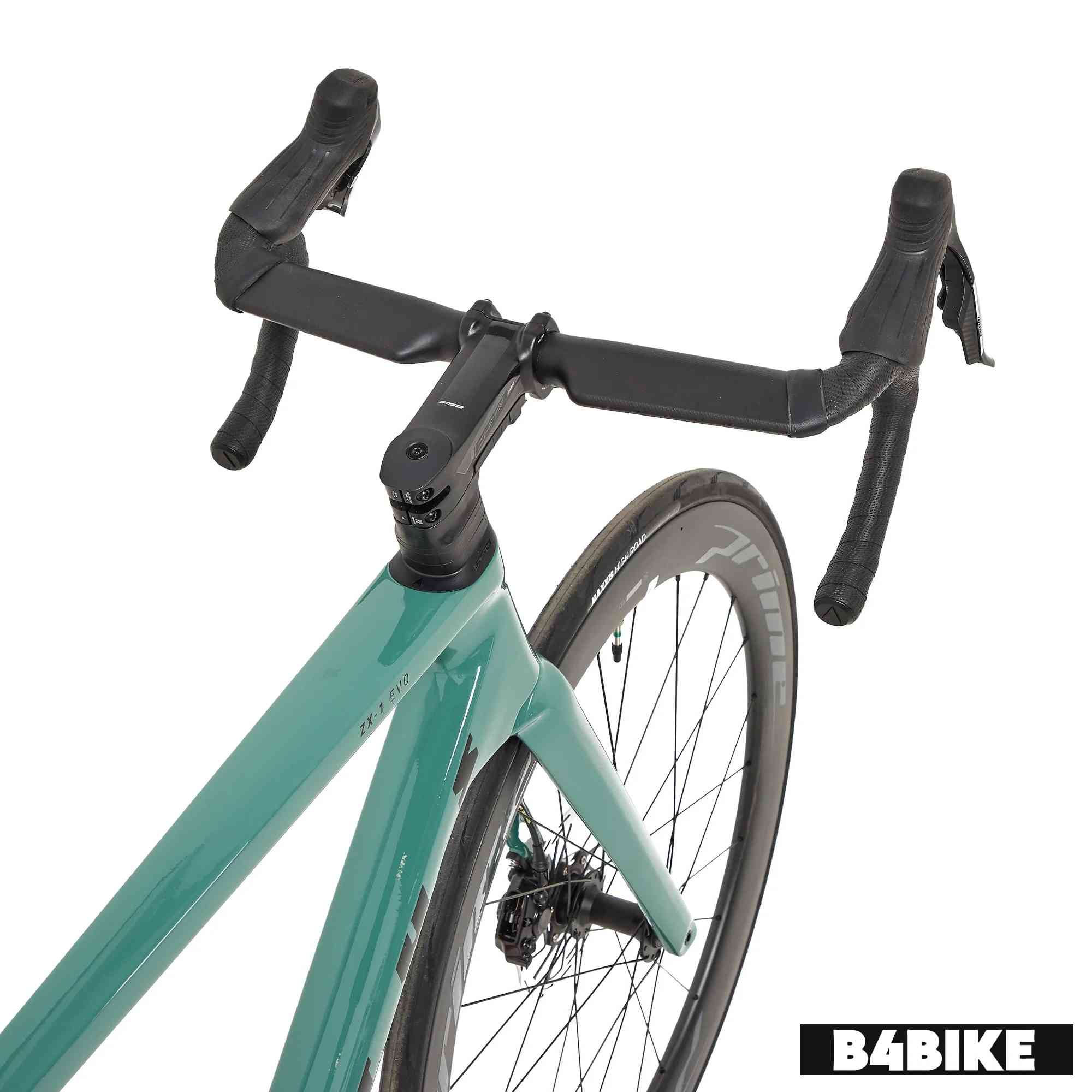

| Stem | FSA NS SMR Aluminium Bar Bore 31.8mm, - 6 degrees, S:100mm M:110mm L:110mm XL:120mm |

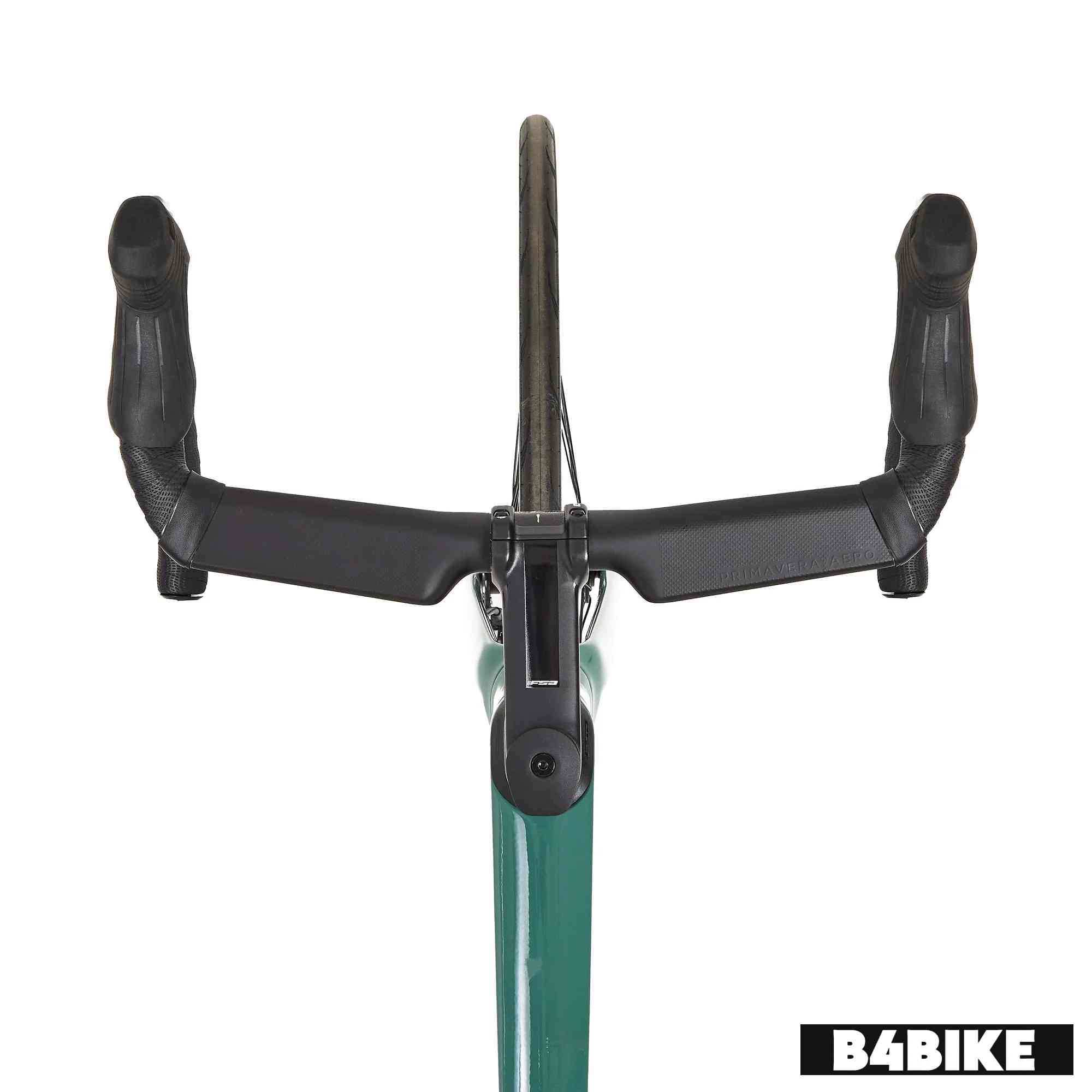

| Handlebar | Prime Primavera Carbon Aero UD Carbon, Reach: 78mm, S:400mm M:420mm L:420mm XL:440mm |

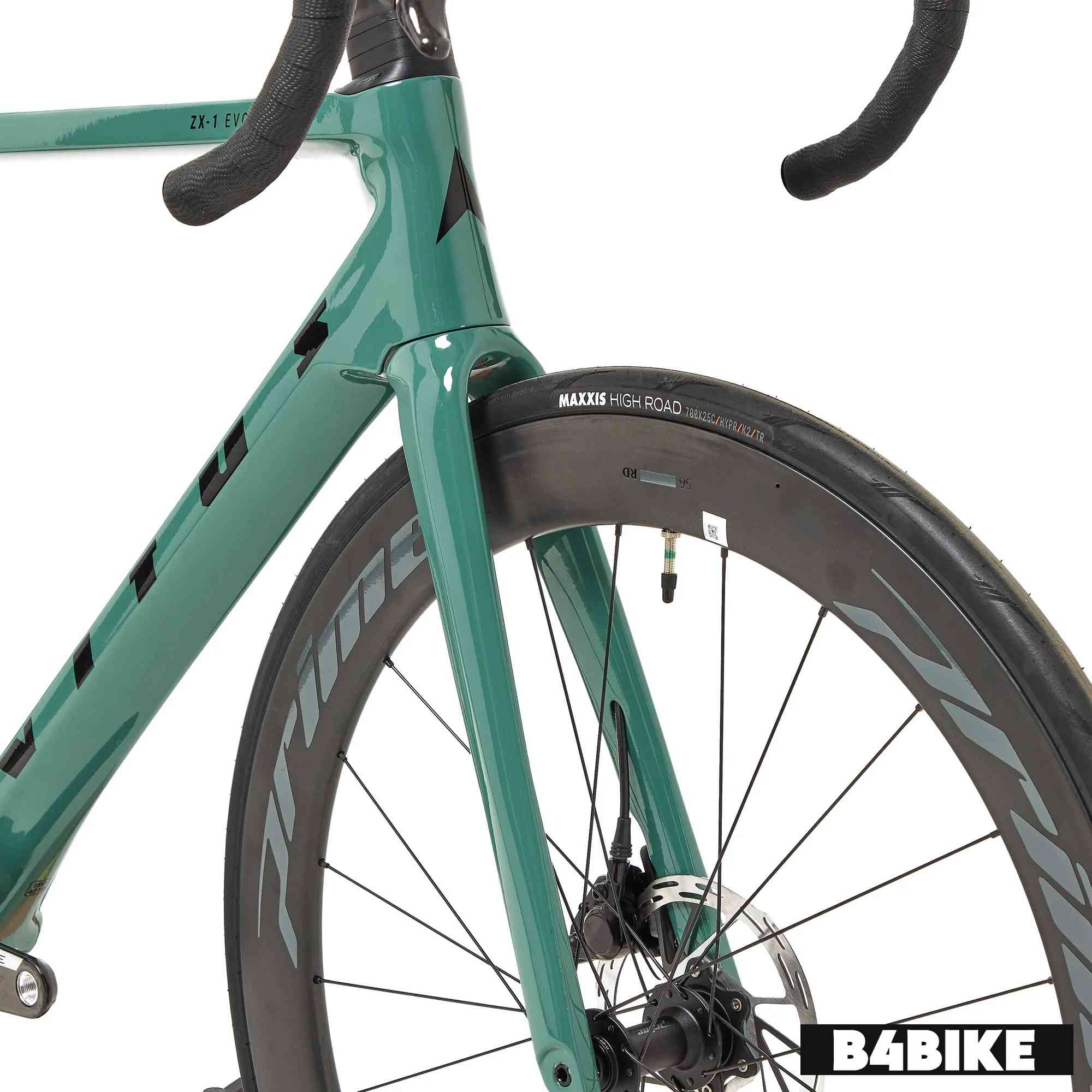

| Fork | SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset |
| Seatpost | ZX-1 EVO Aero S: 300mm M/L/XL: 350mm, +20mm/-2mm Offset |
| Grip | Vitus Super Grip Anti Slip |
| Chain | SRAM Force E1 116 link 12 Speed |
| Shifters | Front: SRAM Force AXS Wireless 2 x 12 Speed Rear: SRAM Force AXS 12 Speed |
| Saddle | Vitus Race Performance CRN-Ti Rail, Pressure Relief Channel |
| Headset | FSA/Vitus ACR Sealed Bearings, No. 84 (compatible with No. 55), ZS52 / 40 Top & Bottom |
| Derailleur : Front | SRAM Force E1 AXS 2 x 12 Speed, Braze-On |

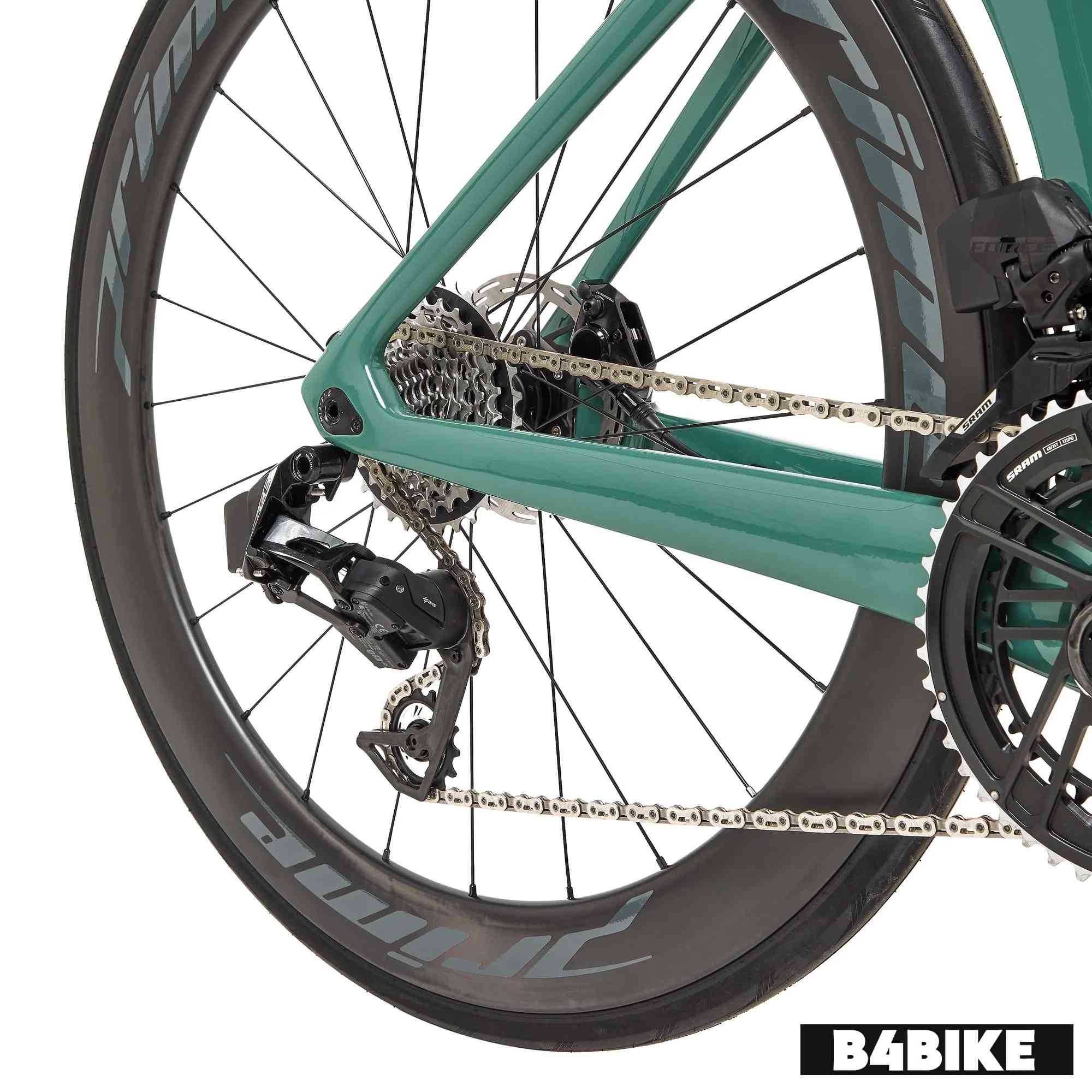

| Derailleur : Rear | SRAM Force E1 AXS 12 Speed, Short Cage |
| Hub : Front | Prime 100 x 12mm, Centre Lock |
| Hub : Rear | Prime 36-point engagement, dual spring star ratchet 142 x 12mm, Centre Lock |
| Cassette | SRAM Force XG 10-33T, 12 Speed |
| Bottom Bracket | SRAM DUB BB386 |
| Brakes | |
|---|---|
| Front Brake | SRAM Force eTap AXS D1Hydraulic Disc, Flat Mount SRAM Paceline Rotor 160mm |
| Rear Brake | SRAM Force eTap AXS D1Hydraulic Disc, Flat Mount SRAM Paceline Rotor 140mm |
| Chassis and Suspension | |
|---|---|
| Frame | SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch |
| Tyres | |
|---|---|
| Wheels / Rim | Prime Doyenne 56 carbon Rim 700c, Tubeless Ready, 56mm rim depth, 23mm internal width, 30mm external width |
| Front Tyre | Maxxis High Road 700c x 28c, Tubeless Ready |
| Rear Tyre | Maxxis High Road 700c x 28c, Tubeless Ready |
| Dimensions | |
|---|---|
| Weight | 8 kg |
