Orbea Denna M11e 20mph Electric Road Bike
- Home ››
- Road Bikes ››
- Orbea ››
- Denna ››
- Denna M11e 20mph
Detailed information on the Orbea Denna M11e 20mph
Orbea Denna M11e 20mph Price
Not Available
Images
Escape Green Gloss - Foggy Matt
Nickel Matt - Carbon Raw Gloss
Caramel Carbon View - Golden Sand (Gloss)
Similar Road Bikes
Colours

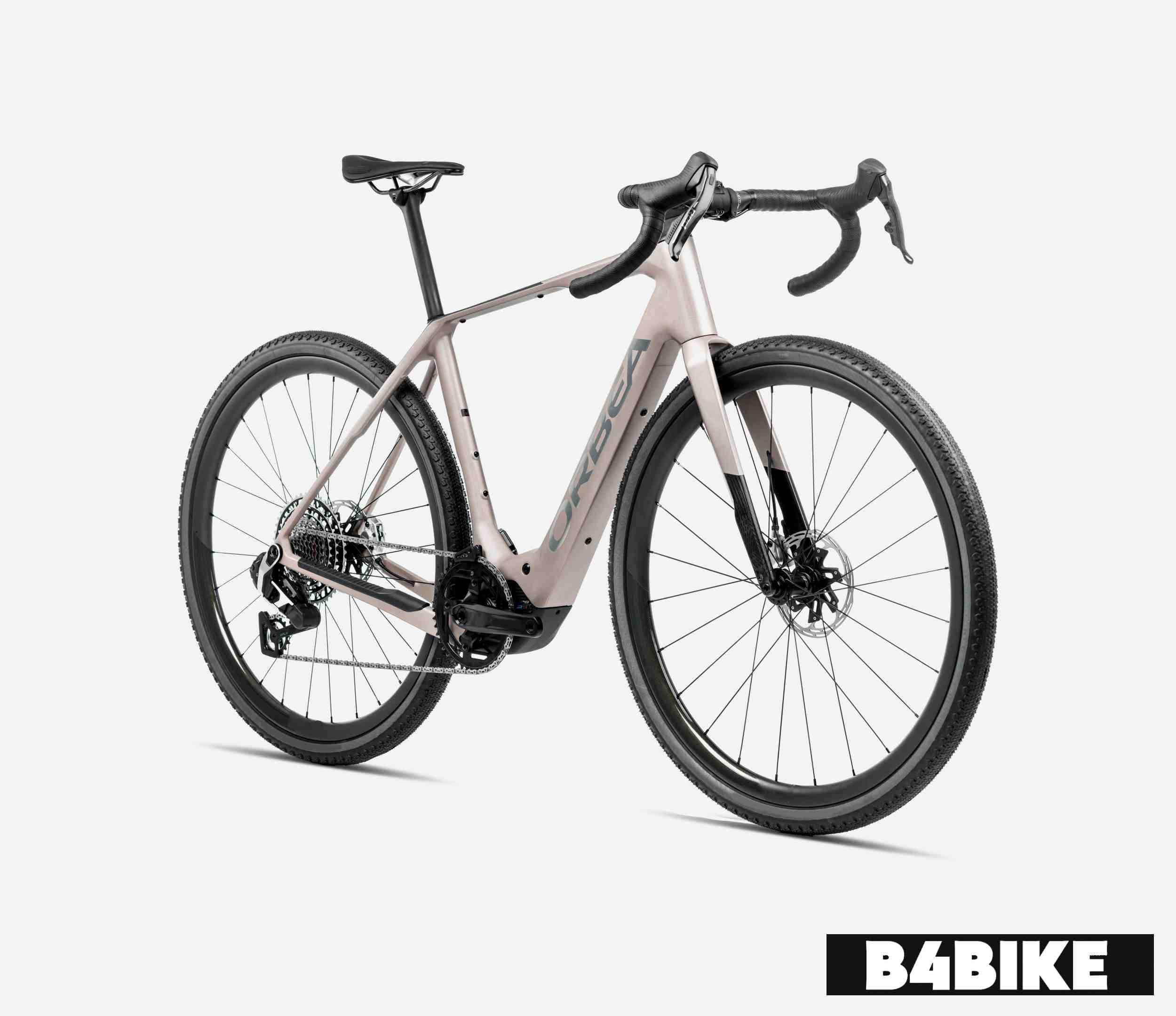

Nickel Matt - Carbon Raw Gloss
Escape Green Gloss - Foggy Matt

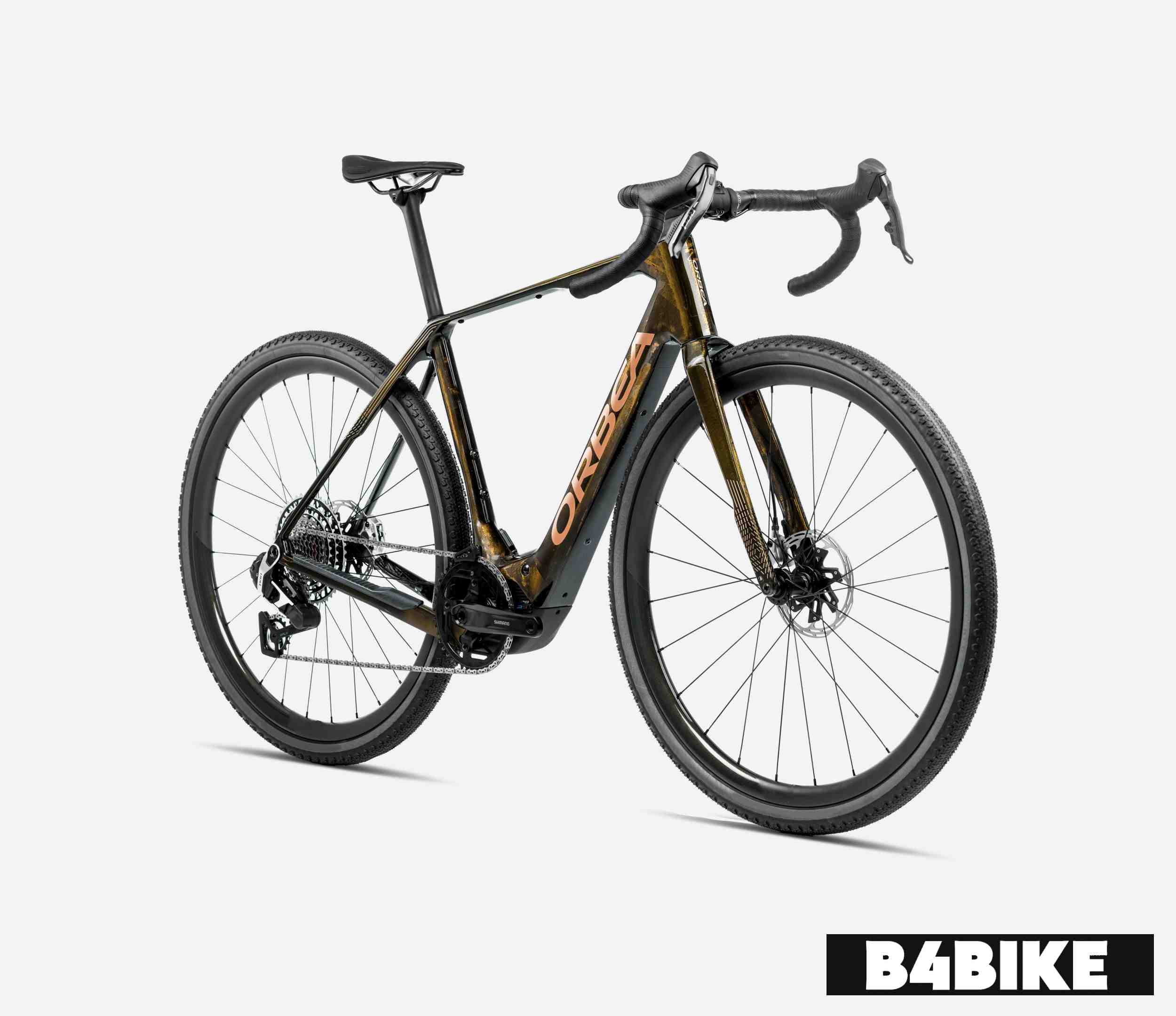

Caramel Carbon View - Golden Sand (Gloss)
Customizable
Specifications
| Vehicle Type | Road Bike |
| Fuel | Electric |
| Stem | OC Road Performance RP10, -8ยบ |
| Handlebar | OC Gravel GR10 Carbon, Reach 70, Drop 110 |
| Fork | Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Grip | Orbea Anti-Slippery/Shock Proof |
| Crankset | Shimano Steps EM600 |
| Chain | Sram Red |
| Shifters | Sram Red AXS |
| Saddle | Selle San Marco Shortfit 2.0 Start Up Off Road Xilite |
| Derailleur : Rear | Sram Red XPLR AXS 13s |
| Cassette | Sram XG-1290 10-46t 13-Speed |
| Chainrings | Alloy EP8 42t |
| Motor Details |
|---|
| Shimano EP801 |
| Electricals | |
|---|---|
| Battery | Orbea Internal 420Wh |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Brakes | |
|---|---|
| Front Brake | Sram Red AXS |
| Rear Brake | Sram Red AXS |
| Chassis and Suspension | |
|---|---|
| Frame | Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |
| Tyres | |
|---|---|
| Wheels / Rim | Oquo Road Control RC30TEAM Front Wheel Axle: Orbea Thru Axle 12x100mm M12xP1 Hollow Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Front Tyre | Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| Rear Tyre | Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| Tube | FSA 1-1/2" Integrated Aluminium Cup |
| Additional Details |
|---|
| Remote: EN600-L Orbea eBike chainguide |
