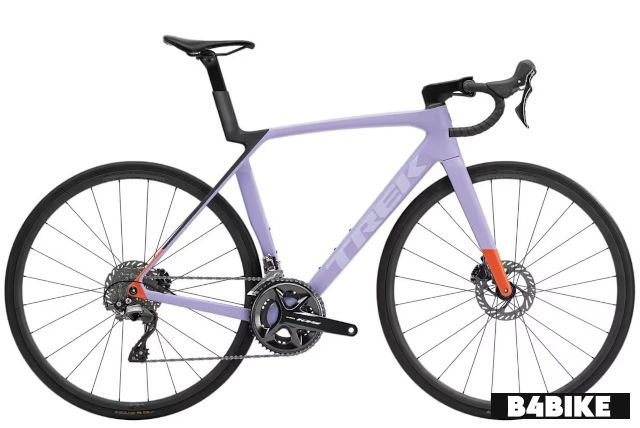

Trek Madone SL 5 Gen 8 Road Bike
- Home ››
- Road Bikes ››
- Trek ››
- Madone ››
- Madone SL 5 Gen 8
Detailed information on the Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8 Price
$
3499
[United States]
The price could differ based on factors such as color, accessories and other features.
| Country, City | Price |
|---|---|
| United States | $ 3499 |

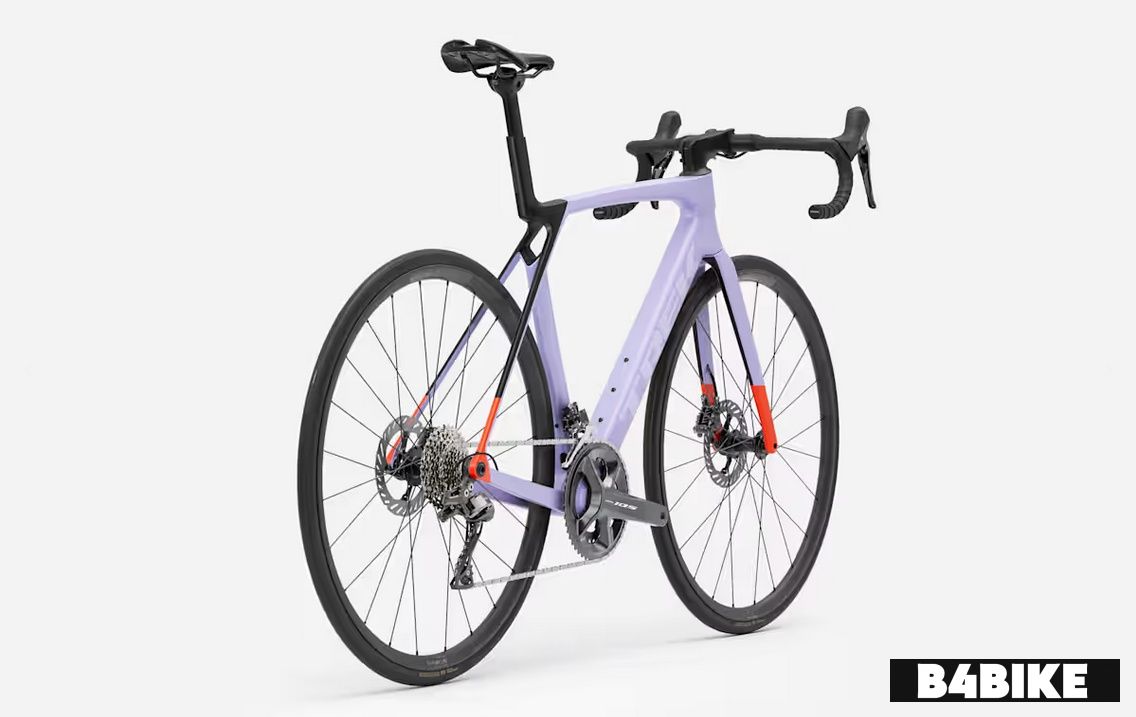

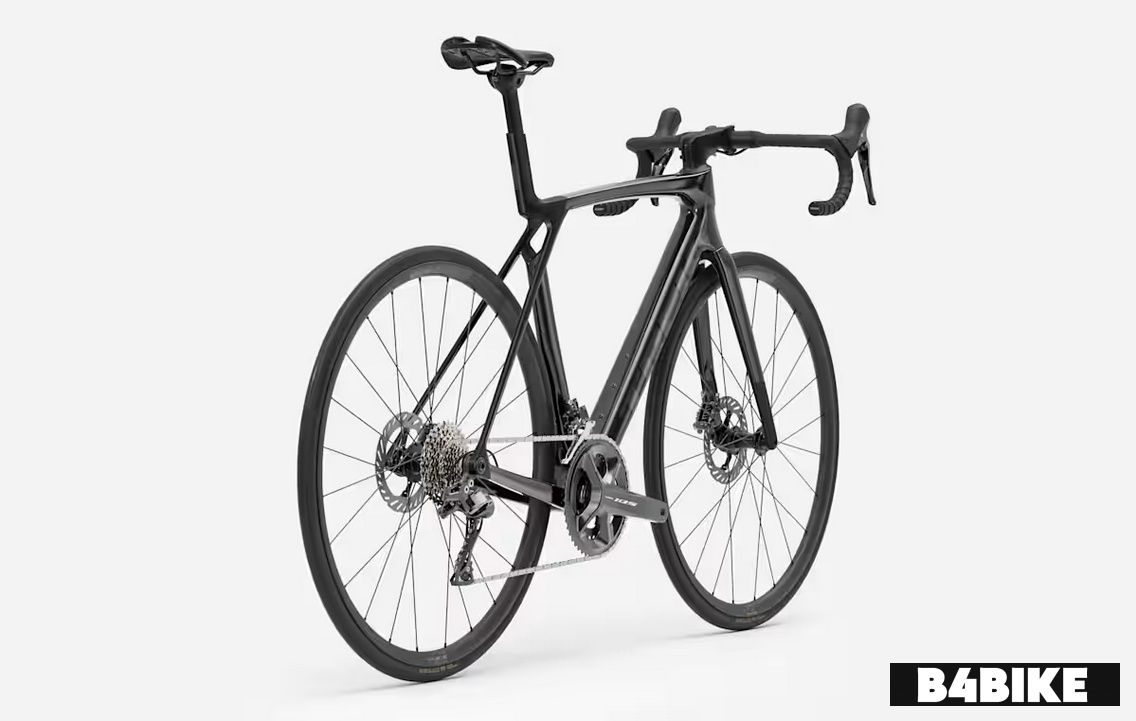

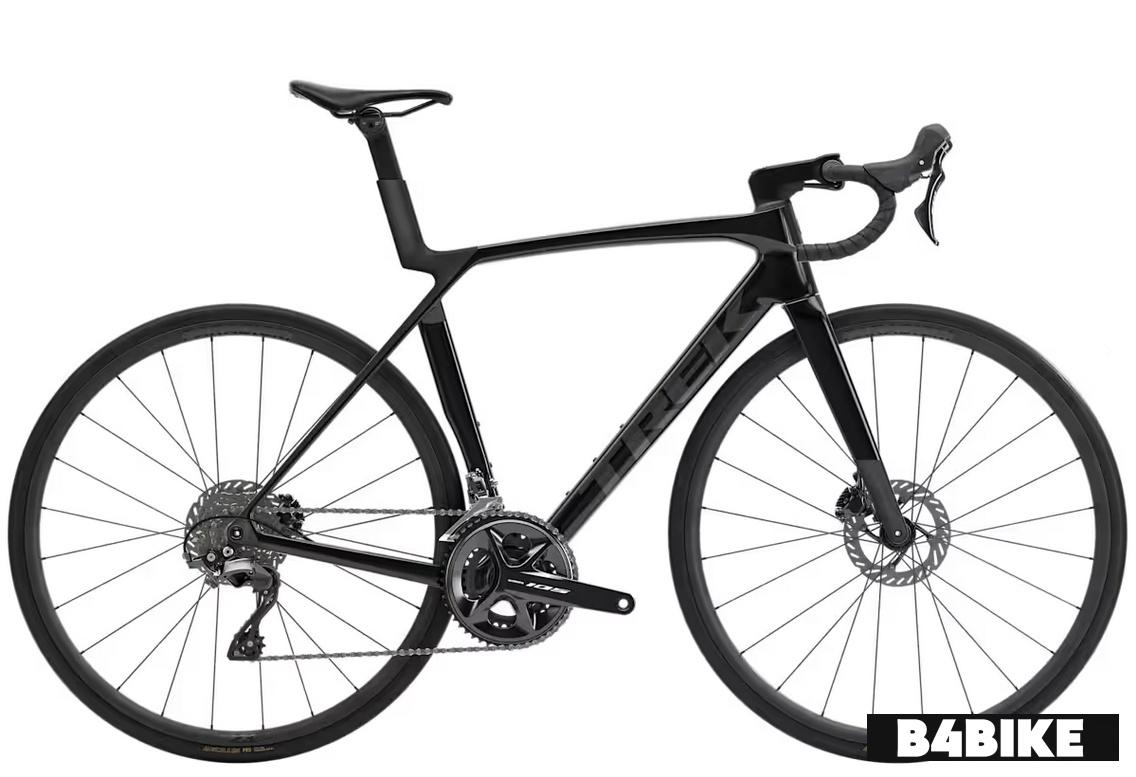

Images
Similar Road Bikes
Colours
Gloss Dark Star/Matte Deep Smoke
Matte Lavender Haze/Deep Smoke
Specifications
| Vehicle Type | Road Bike |
| Load Carrying Capacity | 125 kg |
| Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length Size: S, M Trek RCS Pro, -7-degree, 90 mm length Size: ML, L Trek RCS Pro, -7-degree, 100 mm length |
| Handlebar | Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle |
| Seatpost | Madone aero carbon seat post, 0 mm offset, short length |
| Grip | Trek EcoTack |
| Crankset | Size: XS, S Shimano 105 R7100, 50/34, 165 mm length Size: M, ML Shimano 105 R7100, 50/34, 170 mm length Size: L Shimano 105 R7100, 50/34, 172.5 mm length |
| Chain | Shimano SLX M7100, 12-speed |
| Shifters | Shimano 105 R7120, 12-speed |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145 mm width |
| Derailleur : Front | Shimano 105 R7100, braze-on, down swing |
| Derailleur : Rear | Shimano 105 R7100, 36T max cog |
| Hub : Front | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Hub : Rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Brakes | |
|---|---|
| Front Brake | Shimano 105 hydraulic disc, flat mount Rotor: Shimano CL700, CentreLock, 180 mm |
| Rear Brake | Shimano 105 hydraulic disc, flat mount Rotor: Shimano CL700, CentreLock, 160 mm |
| Chassis and Suspension | |
|---|---|
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Tyres | |
|---|---|
| Wheels / Rim | Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Front Tyre | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm |
| Rear Tyre | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm |
| Dimensions | |
|---|---|
| Weight | 8.64 kg |
| Additional Details |
|---|
| Skewer front: Bontrager Switch chamfered thru axle Skewer rear: Bontrager Switch chamfered thru axle, removable lever |
