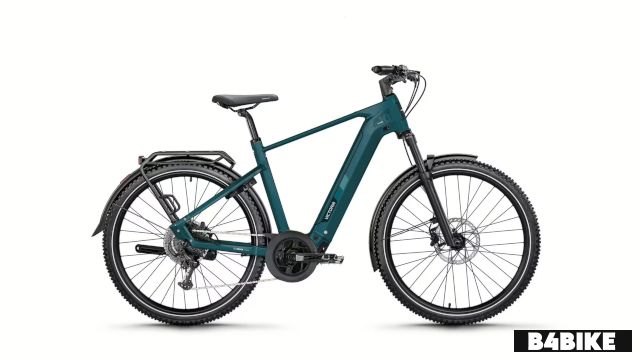

Victoria Avyon 10 diamond Electric Road Bike
- Home ››
- Road Bikes ››
- Victoria ››
- Avyon ››
- Avyon 10 diamond
Detailed information on the Victoria Avyon 10 diamond
Victoria Avyon 10 diamond Price
Not Available
Colours
Lapis Blue Matt
Specifications
| Vehicle Type | Road Bike |
| Fuel | Electric |
| Transmission | 1x 11-fach |
| Drivetrain | BOSCH "Performance Line CX" BES3 |
| Top Speed | 25 kmph |
| Stem | SATORI "Hatchback", 31,8 mm, 90 mm |
| Handlebar | SATORI "WIEN", 31,8mm, 680mm, Rise 20°, Backsweep 15° |
| Fork | ROCKSHOX "Recon RL" 100 mm, 27,5" |
| Seatpost | LIMOTEC "B3", 31,6 mm, Dropper-Post, Travel 40+60 mm, 345 mm, Schwarz |
| Grip | HERRMANS "Nucore Grip Town Peak" |
| Crankset | FSA 170 mm, ISIS |
| Pedals | MARWI "SP-828" Victoria Logo, Schwarz |
| Chain | SHIMANO "CN-LG500" |
| Gear | 11-speed |
| Saddle | SELLE ROYAL "Explora", Moderate |
| Headset | FSA "55R" |
| Derailleur : Rear | SHIMANO "Deore XT RD-M8130", LINKGLIDE, langer Käfig, 11-fach |
| Hub : Front | SHIMANO "HB-M8110-B" Deore XT, Center Lock, 15x110mm, 36H |
| Hub : Rear | SHIMANO "FH-M8010" Deore XT, 8/9/10/11-Fach, Center Lock, 36H, 12x148mm |
| Spoke | 2.0 mm, Niro, schwarz |
| Cassette | SHIMANO "Deore XT CS-M8000", 11-fach, 11-46 Zähne |
| Chainrings | FSA 42 T. |
| Bottom Bracket | BOSCH |
| Display |
|---|
| BOSCH "Kiox 500" |
| Electricals | |
|---|---|
| Battery | BOSCH "PowerTube 800" 800 Wh |
| Charger | BOSCH 4 A, BES3 |
| Head Lamp | BUSCH & MÜLLER "Lumotec IQ-XS highbeam", 100 Lux |
| Tail Lamp | Büchel "Nano COB", integriert im Schutzblech |
| Brakes | |
|---|---|
| Front Brake | SHIMANO "SM-RT30", 203 mm, CenterLock Rotor |
| Rear Brake | SHIMANO "SM-RT30", 180 mm CenterLock Rotor |
| Brake Lever | SHIMANO "Deore XT SL-M8130", LINKGLIDE, 11-fach |
| Chassis and Suspension | |
|---|---|
| Frame | Bosch-Intube-Elektro-Trekking-Frame, Aluminium |
| Tyres | |
|---|---|
| Wheels / Rim | RODI "BlackRock 25" 27,5", 25-584, 36 Loch, Schwarz Rims |
| Front Tyre | MAXXIS "Rekon", 61-584, Reflex |
| Rear Tyre | MAXXIS "Rekon", 61-584, Reflex |
| Additional Details |
|---|
| Bremse V.R.: SHIMANO "BL-MT4100(L)/BR-MT420(F)" SM-MA-F180, Resin Pad Bremse H.R.: SHIMANO "BL-M4100-BR-MT420(R)" SM-MA-F180P/P2, Resin Pad Remote: BOSCH "Mini Remote" 22,2 mm System interface: BOSCH "BRC3100" Sensor: Tretkraftmessung im Motor + Geschwindigkeits sensor Chain guard: CURANA "C-Lite Chainguard" M+, Avyon, Schwarz Schutzblech V.R.: CURANA "Orbit", 65 mm, schwarz matt Schutzblech H.R.: CURANA "Orbit", 65 mm, schwarz matt, Nano CO Carrier: MIK HD Frame Lock: ABUS "4750" XL Kickstand: URSUS "R97 IC invisible Connect" |
