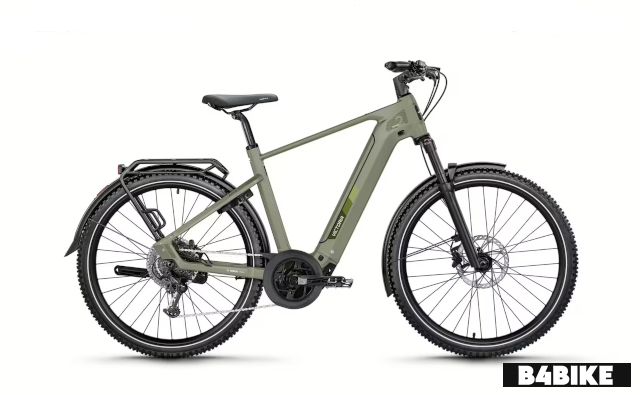

Victoria Avyon 2 diamond Electric Road Bike
- Home ››
- Road Bikes ››
- Victoria ››
- Avyon ››
- Avyon 2 diamond
Detailed information on the Victoria Avyon 2 diamond
Victoria Avyon 2 diamond Price
Not Available
Features
- Bosch Smart System
Colours
Jade Olive Matt
Specifications
| Vehicle Type | Road Bike |
| Fuel | Electric |
| Transmission | 1x 9-fach |
| Drivetrain | BOSCH "Drive Unit Performance" BES3 |
| Top Speed | 25 kmph |
| Stem | SATORI "Hatchback", 31,8 mm, 90 mm |
| Handlebar | SATORI "WIEN", 31,8mm, 680mm, Rise 20°, Backsweep 15° |
| Fork | ROCKSHOX "Judy Silver TK" 100 mm, 27" |
| Seatpost | ERGOTEC "HOOK", 31,6mm, 400mm, 15mm, Schwarz |
| Grip | HERRMANS "Nucore Grip Town Peak" |
| Crankset | Crank arm: FSA 170 mm, ISIS |
| Pedals | MARWI "SP-828" Victoria Logo, Schwarz |
| Chain | SHIMANO "CN-LG500" |
| Gear | 9-speed |
| Saddle | SELLE ROYAL "Explora", Moderate |
| Headset | FSA "55R" |
| Derailleur : Rear | SHIMANO "Cues RD-U4000" 9-Fach |
| Hub : Front | SHIMANO "HB-TC500-15" Center Lock, 15x110mm, 36H |
| Hub : Rear | SHIMANO "FH-TC600-HM-B" 8/9/10-Fach, MTB 11-Fach, Center Lock, 12x148mm, 36H |
| Spoke | 2.0 mm, Niro, schwarz |
| Cassette | SHIMANO "Cues CS-LG400", LINKGLIDE, 9-fach, 11-41 Zähne |
| Chainrings | FSA 38 T |
| Bottom Bracket | BOSCH |
| Display |
|---|
| BOSCH "Purion 200" |
| Electricals | |
|---|---|
| Battery | BOSCH "PowerTube 540" 540 Wh |
| Charger | BOSCH 2 A, BES3 |
| Head Lamp | AXA "NXT", 80 Lux |
| Tail Lamp | Büchel "Nano COB", integriert im Schutzblech |
| Brakes | |
|---|---|
| Front Brake | Hydraulic disc brake SHIMANO "SM-RT30", 203 mm, CenterLock Rotor |
| Rear Brake | Hydraulic disc brake SHIMANO "SM-RT30", 180 mm CenterLock Rotor |
| Brake Lever | SHIMANO "Cues SL-U4000", 9-fach |
| Chassis and Suspension | |
|---|---|
| Frame | Bosch-Intube-Elektro-Trekking-Frame, Aluminium |
| Tyres | |
|---|---|
| Wheels / Rim | RODI "BlackRock 25" 27,5", 25-584, 36 Loch, Schwarz Rim |
| Front Tyre | MAXXIS "Metropass AT", 61-584 |
| Rear Tyre | MAXXIS "Metropass AT", 61-584 |
| Additional Details |
|---|
| Dropout: UDH Bremse V.R.: SHIMANO "BL-MT4100(L)/BR-MT420(F)" SM-MA-F180, Resin Pad Bremse H.R.: SHIMANO "BL-M4100-BR-MT420(R)" SM-MA-F180P/P2, Resin Pad Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor Chain guard: CURANA "C-Lite Chainguard" M+, Avyon, Schwarz Schutzblech V.R.: CURANA "Orbit", 65 mm, schwarz matt Schutzblech H.R.: CURANA "Orbit", 65 mm, schwarz matt, Nano COB Carrier: MIK HD Frame Lock: ABUS "4750" XL Kickstand: URSUS "R97 IC invisible Connect" Others: HTM 2.0 Aufnahme |
