Orbea Gain M10I Electric Road Bike
- Home ››
- Road Bikes ››
- Orbea ››
- Gain ››
- Gain M10I
Detailed information on the Orbea Gain M10I
Orbea Gain M10I Price
Not Available
Images

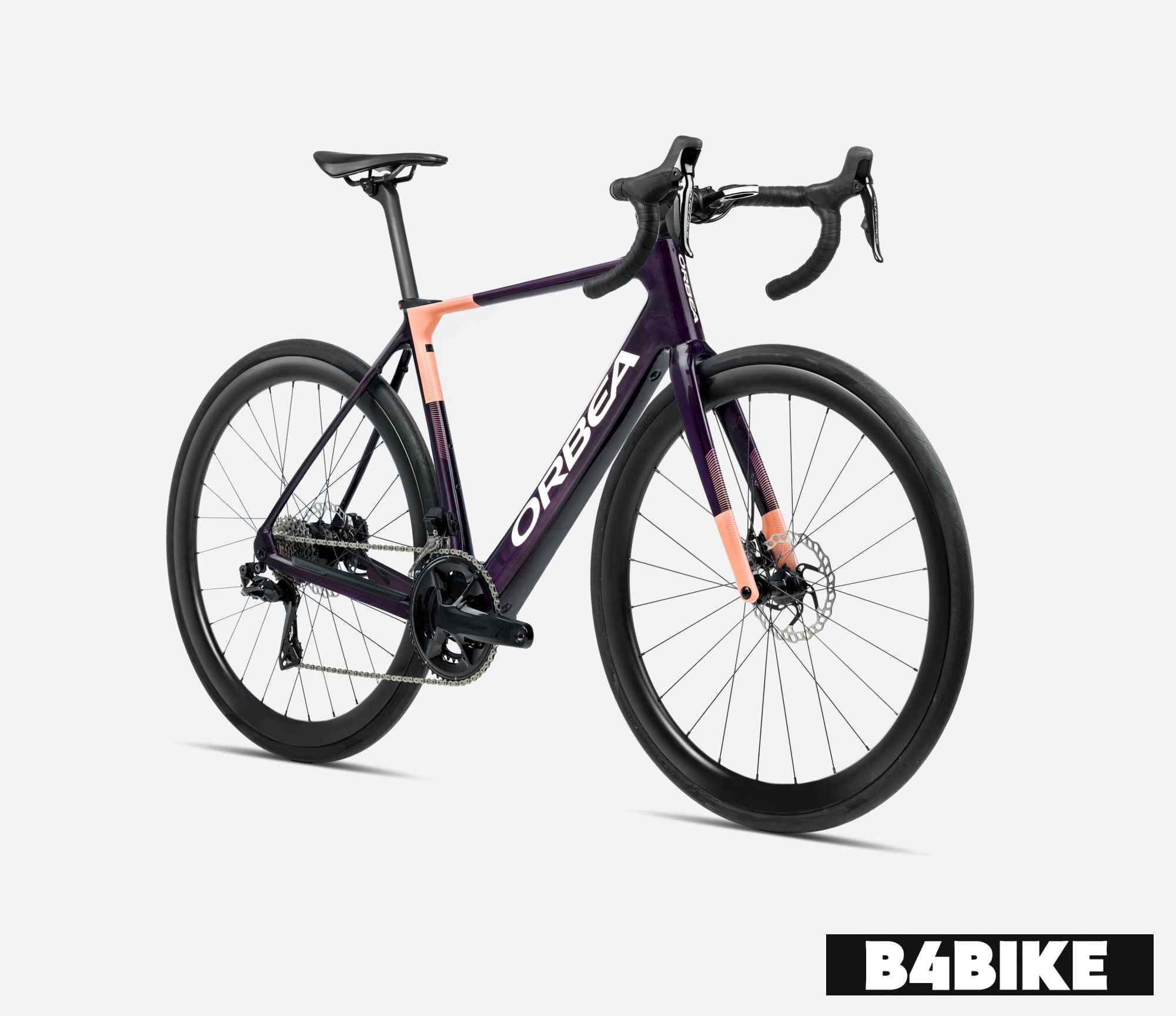

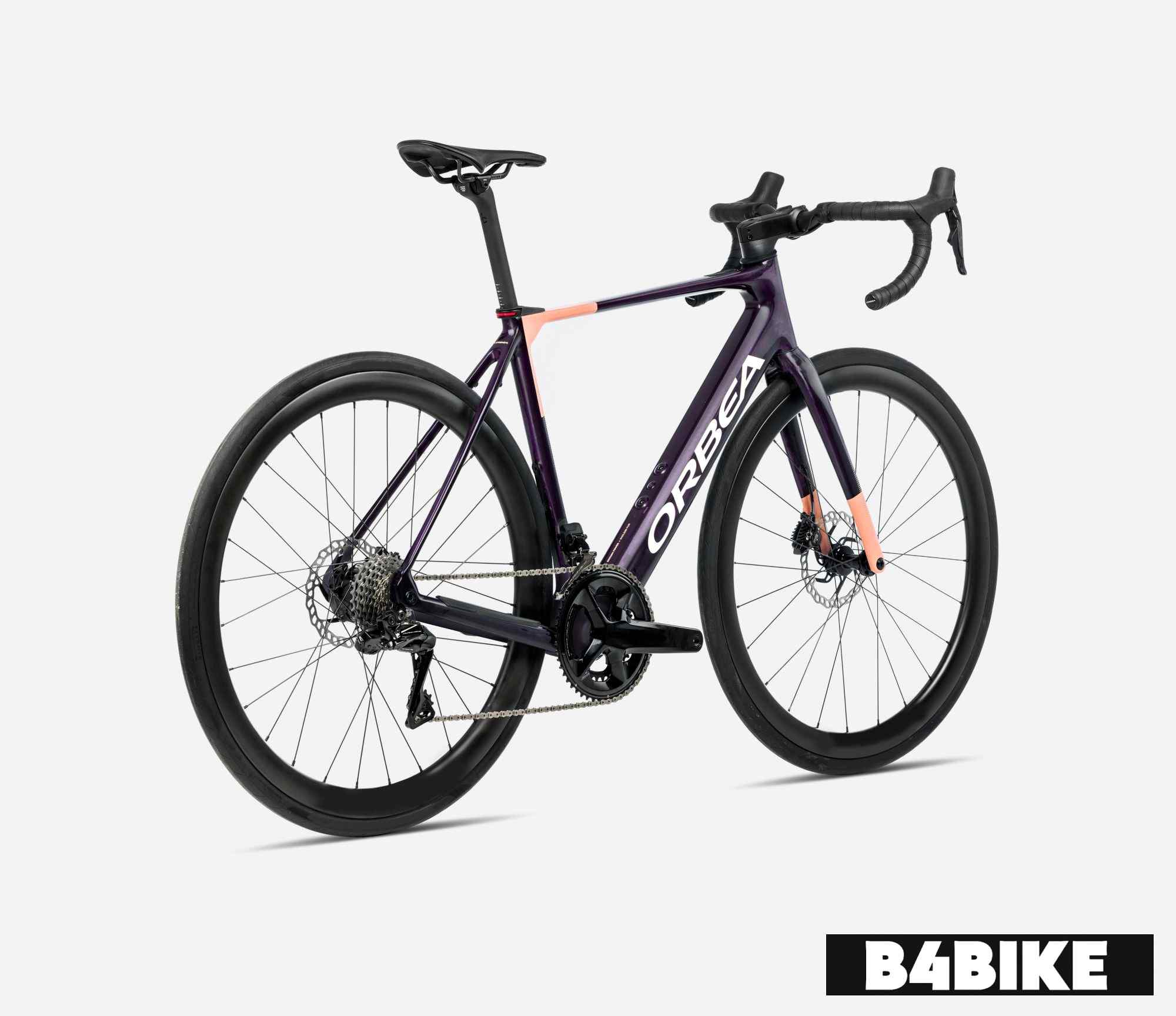

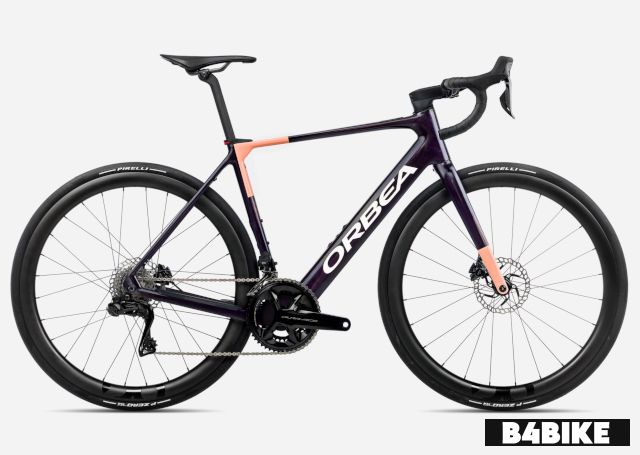

Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)

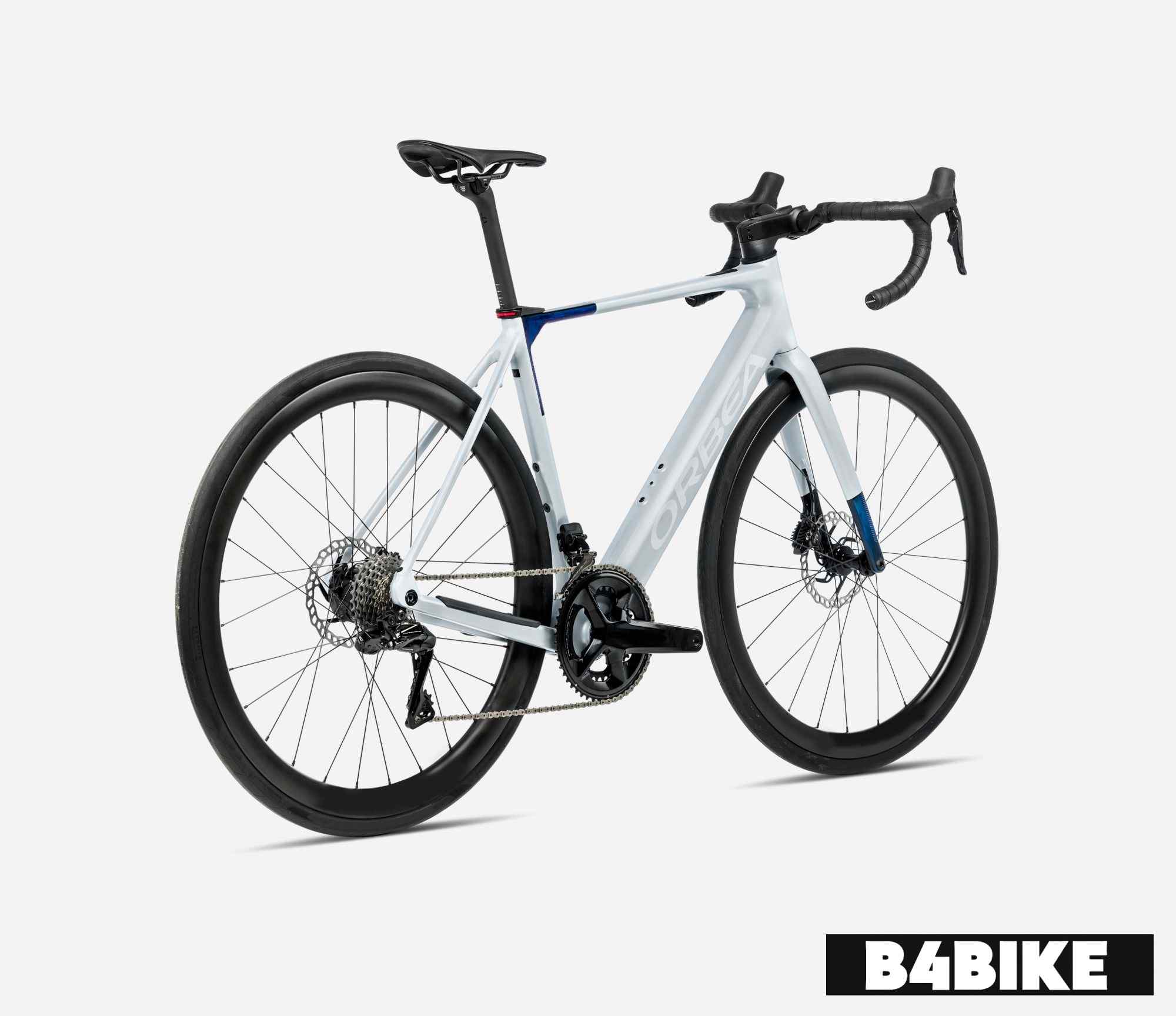

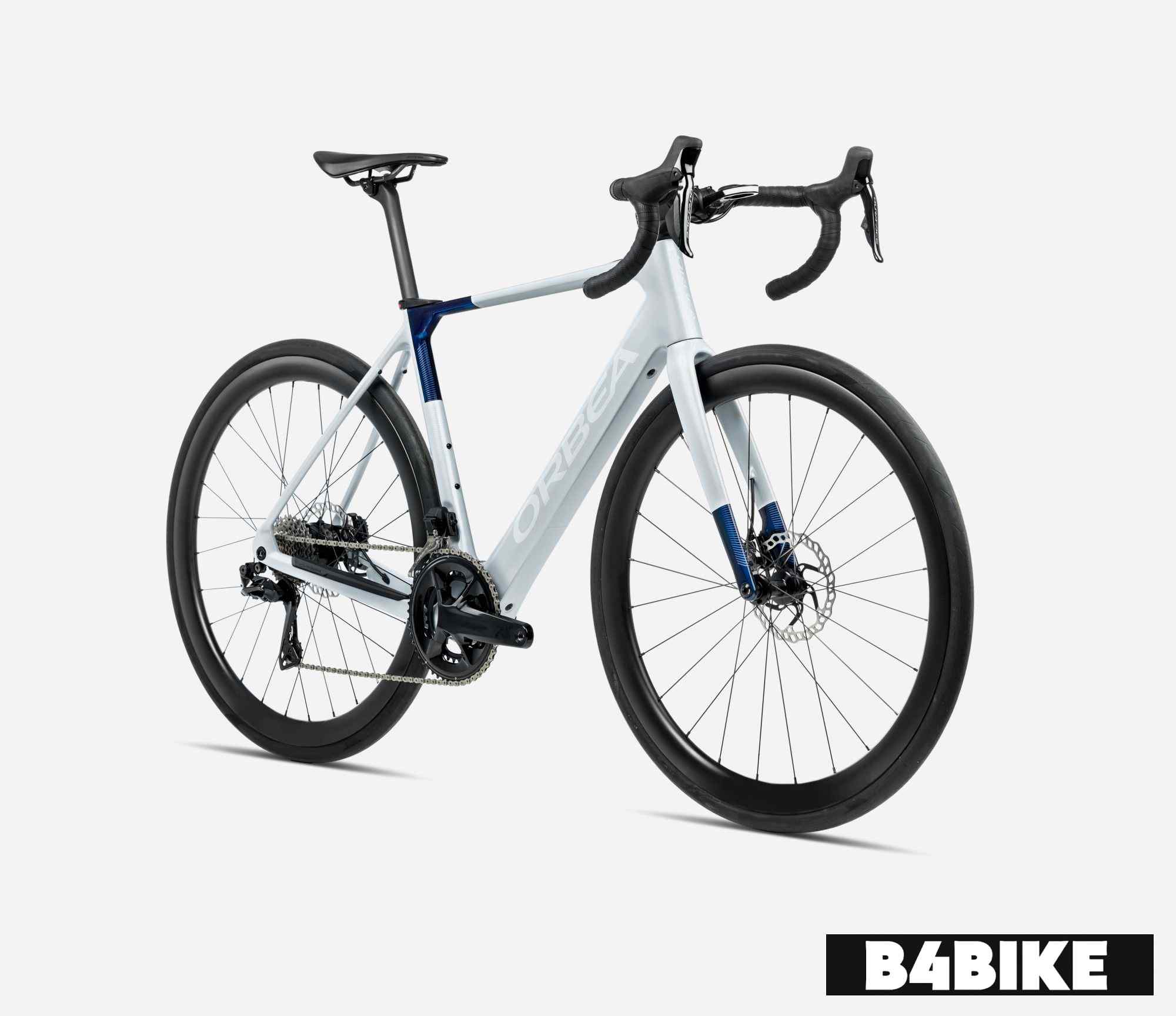

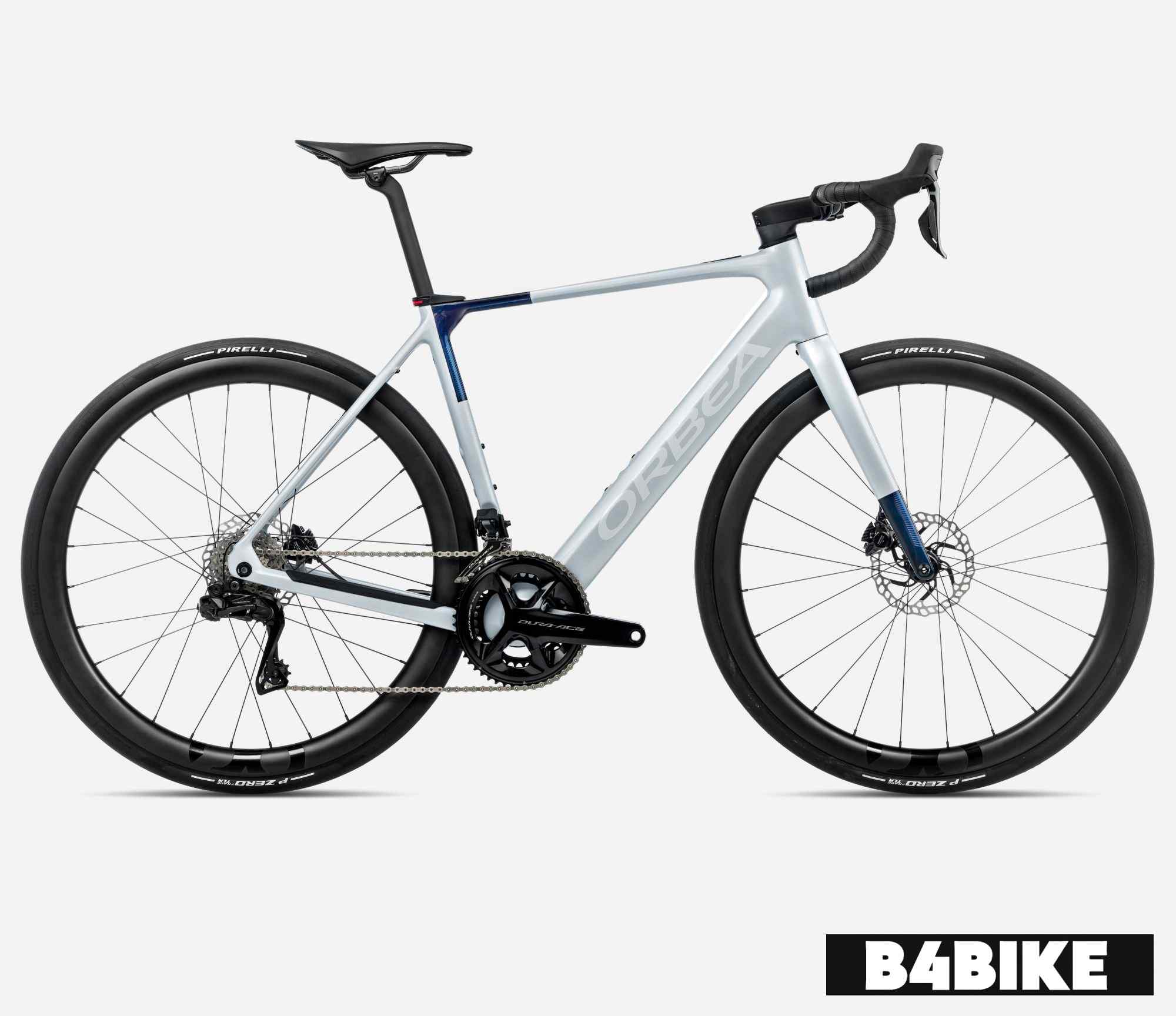

Halo Silver (Matt) - Blue Carbon View (Gloss)
Similar Road Bikes
Colours
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)
Halo Silver (Matt) - Blue Carbon View (Gloss)
Customizable
Specifications
| Vehicle Type | Road Bike |
| Fuel | Electric |
| Stem | OC Road Performance RP10, -8º |
| Handlebar | OC Road Performance RP11-R Carbon, Rise 15, Reach 70, Drop 125 |
| Fork | Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Grip | Orbea Anti-Slippery/Shock Proof |
| Crankset | Shimano Dura-Ace R9200 34x50t |
| Chain | Shimano CN-9100 |
| Shifters | Shimano R9270 |
| Saddle | Fizik Vento Antares R1 Carbon Rail 140mm |
| Derailleur : Front | Shimano Dura-Ace Di2 R9250 |
| Derailleur : Rear | Shimano Dura-Ace Di2 R9250 |
| Cassette | Shimano Dura-Ace R9200 11-30t 12-Speed |
| Motor Details |
|---|
| Mahle motor hub X20, ALC |
| Display |
|---|
| Mahle Pulsar One monochrome ANT+ LEV |
| Electricals | |
|---|---|
| Battery | Mahle iX350 36V 353Wh |
| Charger | Mahle Active Charger up to 4A |
| Head Lamp | Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50 |
| Tail Lamp | Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO |
| Brakes | |
|---|---|
| Front Brake | Shimano R9270 Hydraulic Disc |
| Rear Brake | Shimano R9270 Hydraulic Disc |
| Chassis and Suspension | |
|---|---|
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug |
| Tyres | |
|---|---|
| Wheels / Rim | Carbon 42, Tubeless, 21c Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Tyre | Pirelli P ZERO™ Race X SmartEVO TLR 700x30c |
| Rear Tyre | Pirelli P ZERO™ Race X SmartEVO TLR 700x30c |
| Additional Details |
|---|
| Steerer tube: FSA 1-1/2" Integrated Aluminium Cup Remote: Mahle ONE Head Unit (BT/ANT+) Remote2: Mahle Handlebar Dual eShifter |
