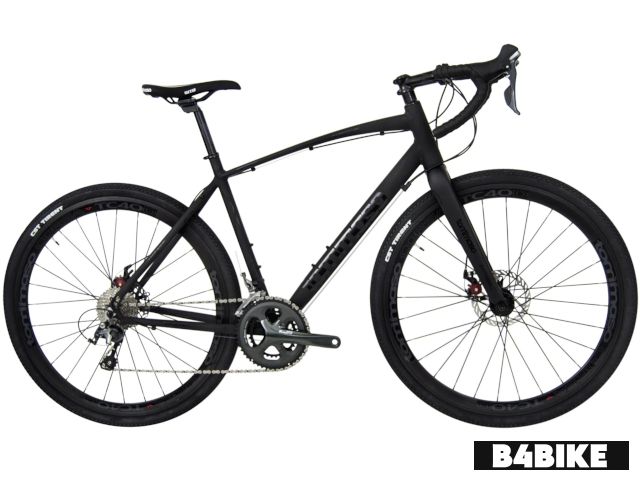

Detailed information on the Tommaso Illimitate
The Tommaso Illimitate Road Bike focuses on practical component choices. The KMC X10 chain manages shifting well across the 10-speed cassette. Shimano Tiagra 4700 shifters handle gear changes with a crisp, mechanical feel that suits both city streets and light gravel. Frame geometry leans toward endurance riding, giving more comfort over long distances. The matte finish and internal cable routing lend it a timeless look.
Rate Tommaso Illimitate:
Tommaso Illimitate Price
Not Available
Specifications
| Vehicle Type | Road Bike |
| Stem | Tommaso TRS Ultralight Sport Series 75mm (XS Frame) / 90mm (S Frame) / 105mm (M Frame) / 120mm (L, XL Frames) |
| Handlebar | Tommaso TRS Ultralight Sport Series 400mm (XS Frame) / 420mm (S, M, L Frames) / 440mm (XL Frame) Handlebar Reach: 80mm Handlebar Drop: 125mm |
| Fork | Tommaso HCT Carbon Fiber Fork with 1 1/8” Aluminum Steer Tube |
| Seatpost | Tommaso TRS Ultralight Race Series Aluminum 27.2mm |
| Grip | Tommaso Cork Black Tape |
| Crankset | Shimano Tiagra 4700 50/34t Compact Crank Arm Length: 170mm (XS Frame) / 172.5mm (S, M Frames) / 175mm (L, XL Frames) |
| Pedals | Composite Flat |
| Chain | KMC X10 (10-Speed) |
| Shifters | Shimano Tiagra 4700 |
| Gear | 2x10 (20 Total Speeds) |
| Saddle | WTB Volt - Tommaso Logo |
| Headset | 1-1/8" Integrated |
| Derailleur : Front | Shimano Tiagra 4700 (2-spd) |
| Derailleur : Rear | Shimano Tiagra 4700 (10-spd) |
| Cassette | Shimano Tiagra 4700 - 11-32t (10spd) |
| Bottom Bracket | Shimano Tiagra 4700 |
| Brakes | |
|---|---|
| Front Brake | Avid BB5 Disc Brake |
| Rear Brake | Avid BB5 Disc Brake |
| Brake Lever | Shimano Tiagra 4700 |
| Chassis and Suspension | |
|---|---|
| Frame | Tommaso 6061 SLA Aluminum Compact Road Frame |
| Tyres | |
|---|---|
| Wheels / Rim | Tommaso Corsa TC-40D |
| Front Tyre | CST Tirent All-Terrain 700x40c |
| Rear Tyre | CST Tirent All-Terrain 700x40c |
| Tube | 700 x 40c Presta |
| Additional Details |
|---|
| Sizes: XS, S, M, L, XL |
