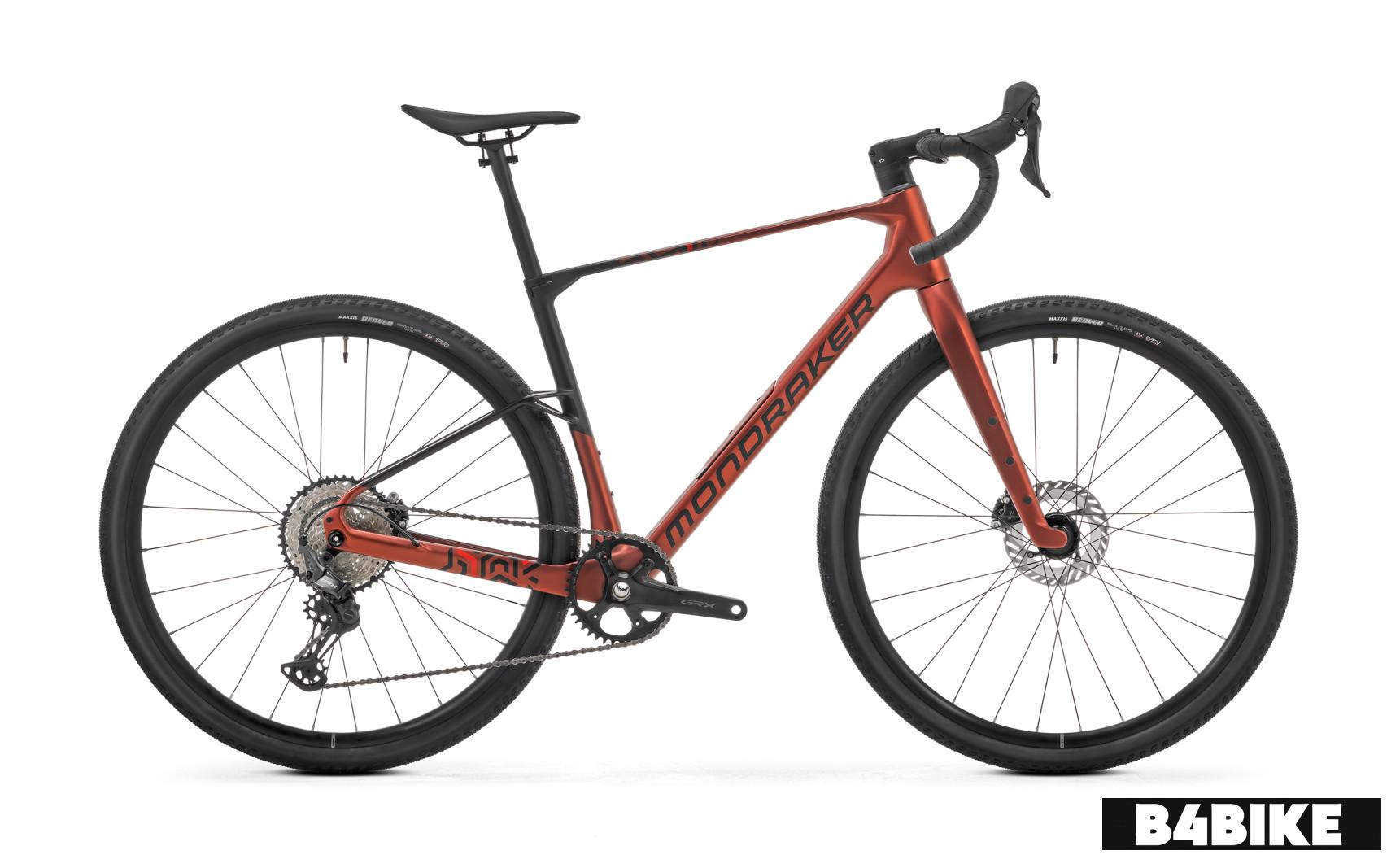

Detailed information on the Mondraker Arid Carbon
The Mondraker Arid Carbon Road Bike uses a Shimano SLX M7100 chain with a quick link for efficient drivetrain performance. Its Shimano GRX RX-610 dual control shifters with alloy levers ensure precise gear changes.
Rate Mondraker Arid Carbon:
Mondraker Arid Carbon Price
Not Available
Images
Specifications
| Vehicle Type | Road Bike |
| Stem | Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm |
| Handlebar | OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm |
| Fork | Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork |
| Seatpost | Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm |
| Grip | OnOff HEX Bar tape |
| Crankset | Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7 |
| Chain | Shimano SLX M7100, Quick link |
| Shifters | Shimano GRX RX-610 dual control, alloy lever |
| Saddle | FIZIK Terra Argo X5 140mm |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing |
| Derailleur : Rear | Shimano GRX RX-822-GS, 12s |
| Hub : Front | Mavic, 12x100mm, IS 6 bolts |
| Hub : Rear | Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub |
| Spoke | Mavic Steel double butted flat spokes |
| Cassette | Shimano SLX M7100, hiperglide+,10-45, 12s |
| Chainrings | Shimano 40T, direct mount, steel |
| Bottom Bracket | Token T47 BSA sealed bearings, 85,5mm |
| Brakes | |
|---|---|
| Front Brake | Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad |
| Rear Brake | Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad |
| Brake Lever | Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever |
| Chassis and Suspension | |
|---|---|
| Frame | Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flat mount brake compatible |
| Tyres | |
|---|---|
| Wheels / Rim | Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear |
| Front Tyre | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tyre | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Dimensions | |
|---|---|
| Weight | 9.7 kg |
| Additional Details |
|---|
| Carry-On Bags System Derailleur hanger: Sram UDH |
